WMTS maps

What is a WMTS map?

WMTS (Web Map Tile Service) is a geographic information system database that contains different map layers. Connect to the server via a URL and choose the map layer or layers that you want to use.

Are there any requirements (e.g. CRS) for using WMTS maps in Maptionnaire?

The WMTS should support WGS84 EPSG: 4326 or 3857.

How to upload a WMTS map to Maptionnaire:

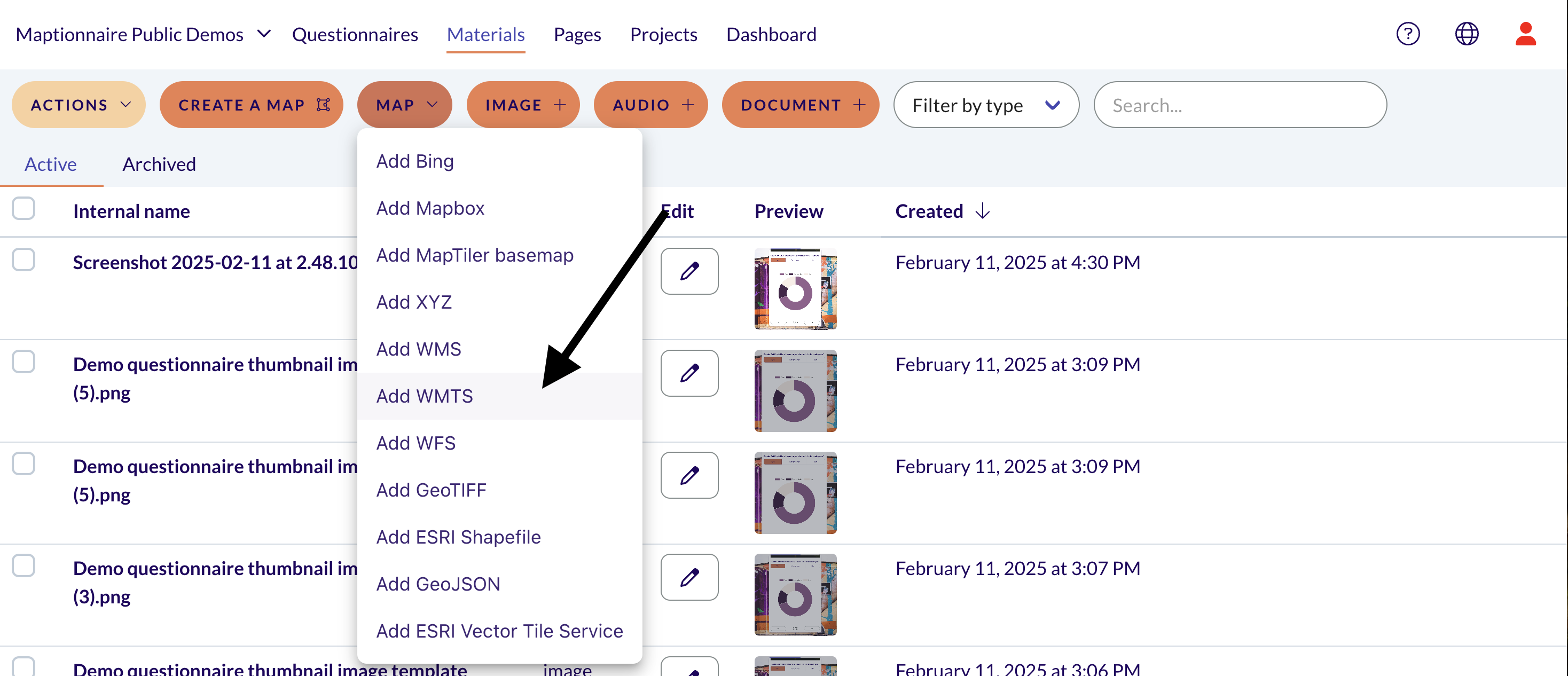

    1. Go to Materials. Click + Map and choose WMTS from the drop-down menu.

      Screenshot 2025-02-12 at 2.34.16 PM.png

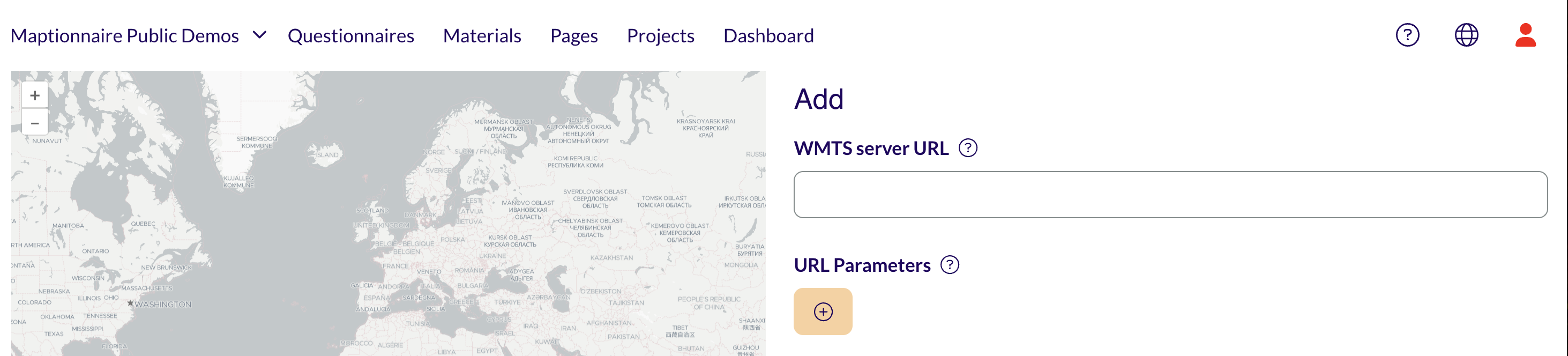

    2. Enter the WMTS server URL. This should be the basic URL of the map server without any layers specified.

      Screenshot 2025-02-12 at 2.35.22 PM.png

      If the WMTS that you are using requires an API key, click the + symbol under URL Parameters. Write the parameter (e.g. access_token or api-key) in the first field, and the API key in the second one.

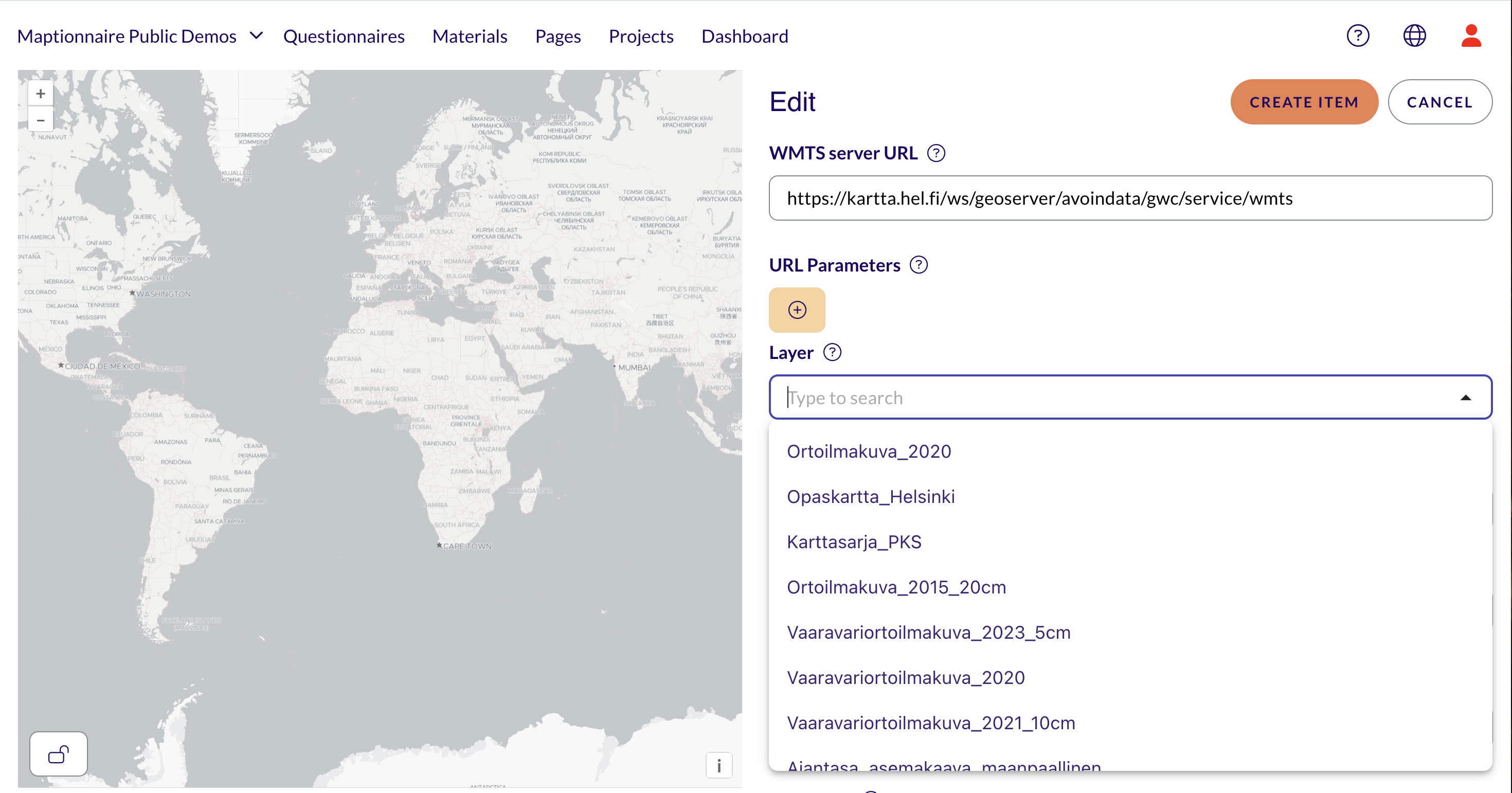

    3. Choose the layer from the Layer section. The map should appear in the preview window (it may require you to zoom into it manually).

      Screenshot 2025-02-12 at 2.37.21 PM.png

    4. Check that the Matrix set is set to WGS84_Pseudo-Mercator

    5. Click Create item
    6. Go to the questionnaire and to Map and layout. Select the WMTS map under Own basemaps. Set the default map view and preview.
