Share survey results on a Project Page (Add charts & maps)

You can showcase survey results on Project Pages by adding charts and maps to it, enabling you to effectively communicate your findings to a broader audience. You can easily update the charts with just once click!

Adding charts to Project Pages

Charts are added and updated to Project Pages one at a time. The same question can be charted several times with different filters.

• Adding a chart to a Project Page: Follow steps #1-6.
• Updating a chart on Project Page: Go to step #7

1. Open one chart. In the top right corner, click Export chart.

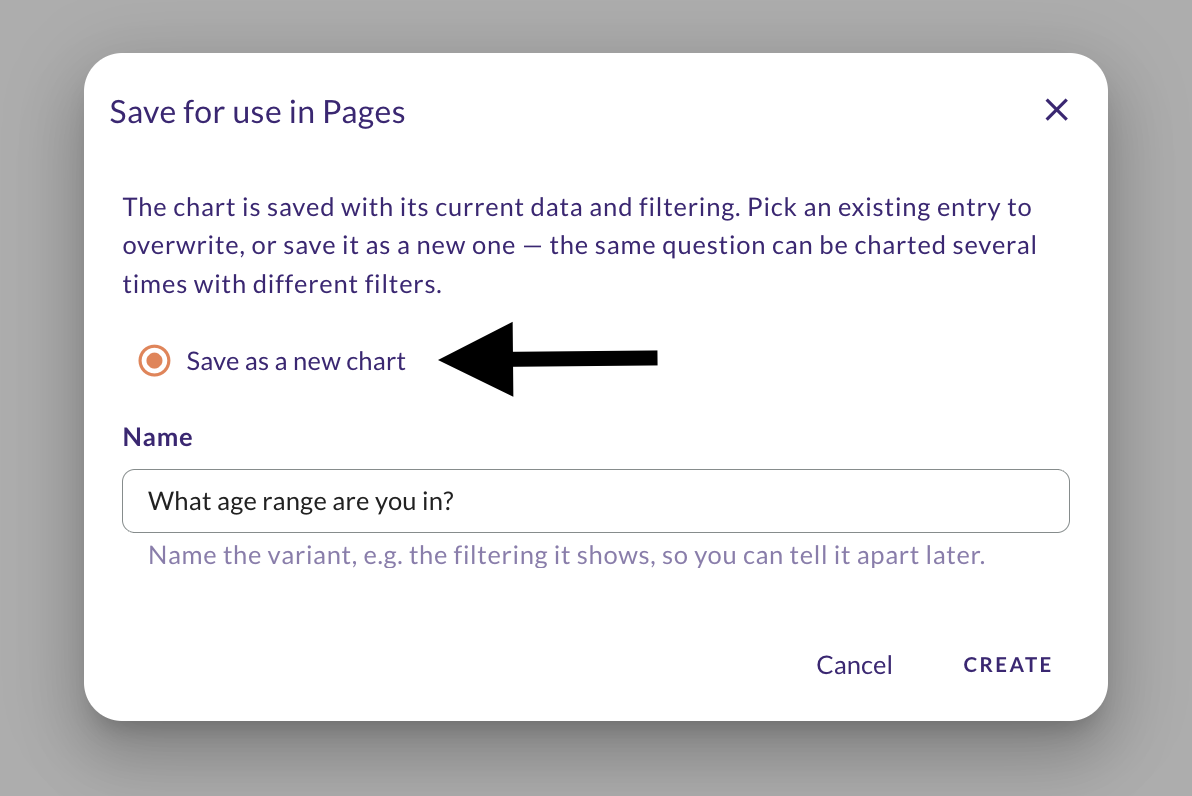

2. To add a completely new chart to a Project page, click Save as a new chart. Then go to your Project Page.



3. In your Project Page, add a Chart-element (Or a Columns element inside which the Chart is).



4. Choose the survey from which you want to bring the new Chart from.



5. Choose the chart.



6. Finished, the chart is now on your Project Page! From now on out, you can update this chart and any others on the page with a single click, without needing to go back to the Analysis tool.



Updating your charts

• Update all charts from the Project Page directly with one click.
• Update single chart from the analysis tool.

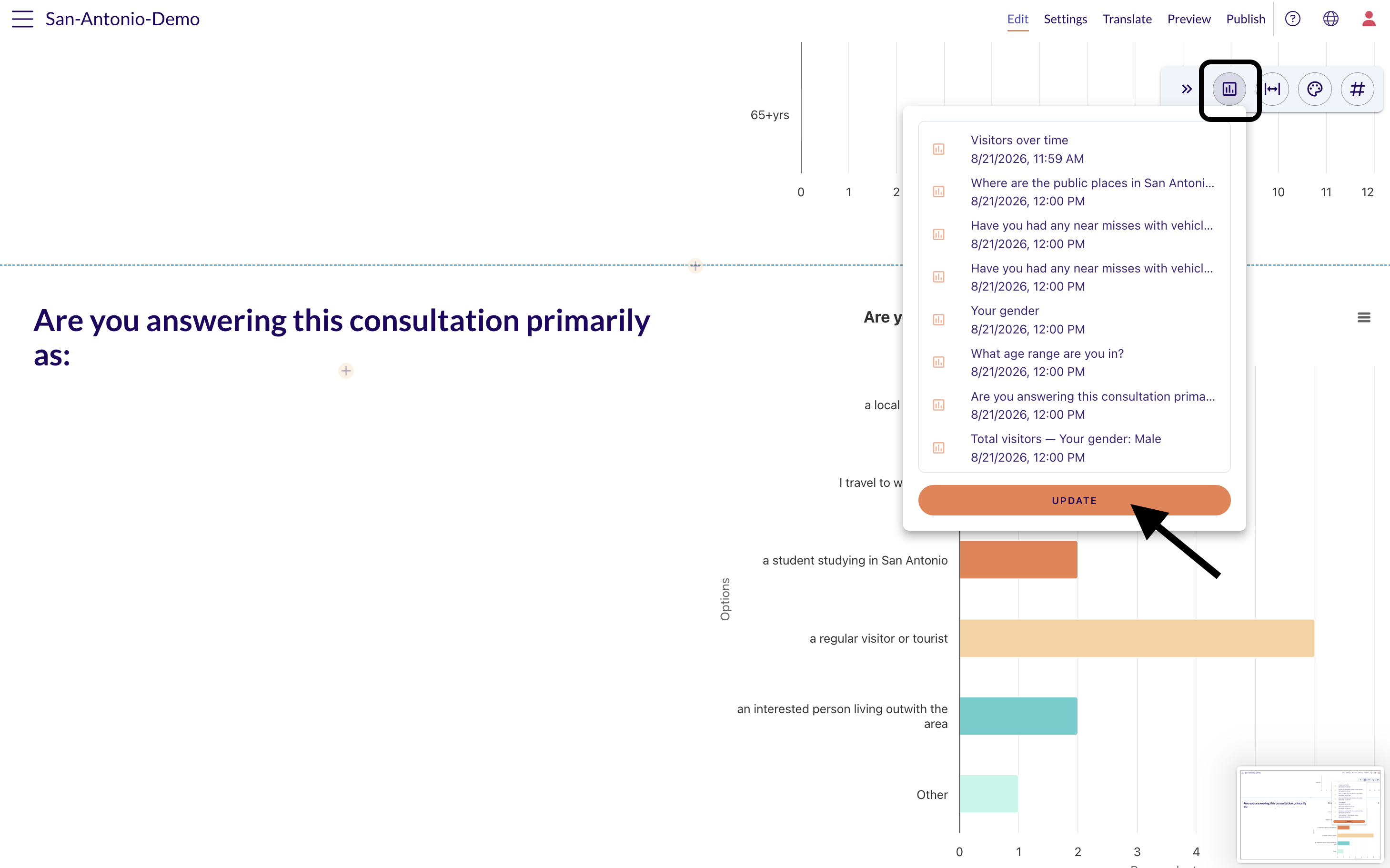

7. Updating charts on the Project Page is easy, single click action. Press on the chart-icon at the right. This updates all your charts to have the most recent data from your survey.


If you want to update only a single chart, go to that chart in the Analysis tool. Press Export chart > Maptionnaire page element




Adding maps to Project Pages

There are two ways to present map responses on a report page:

• If you want to show specific trends or use a heatmap, you can create the maps in Analyze and then add them (as images) to the Project Page
• If you want to create an interactive map of the results, you can do that by exporting the map data as geoJSONs and adding it to a new survey. This survey can then be embedded onto a Project Page.

Heatmaps and maps showing a specific trend

1. Go to Analyze and Map responses. Click the map questions that you want to visualize on the map. Add filters and edit the visualization if needed. Save the view if you want to return to it later.

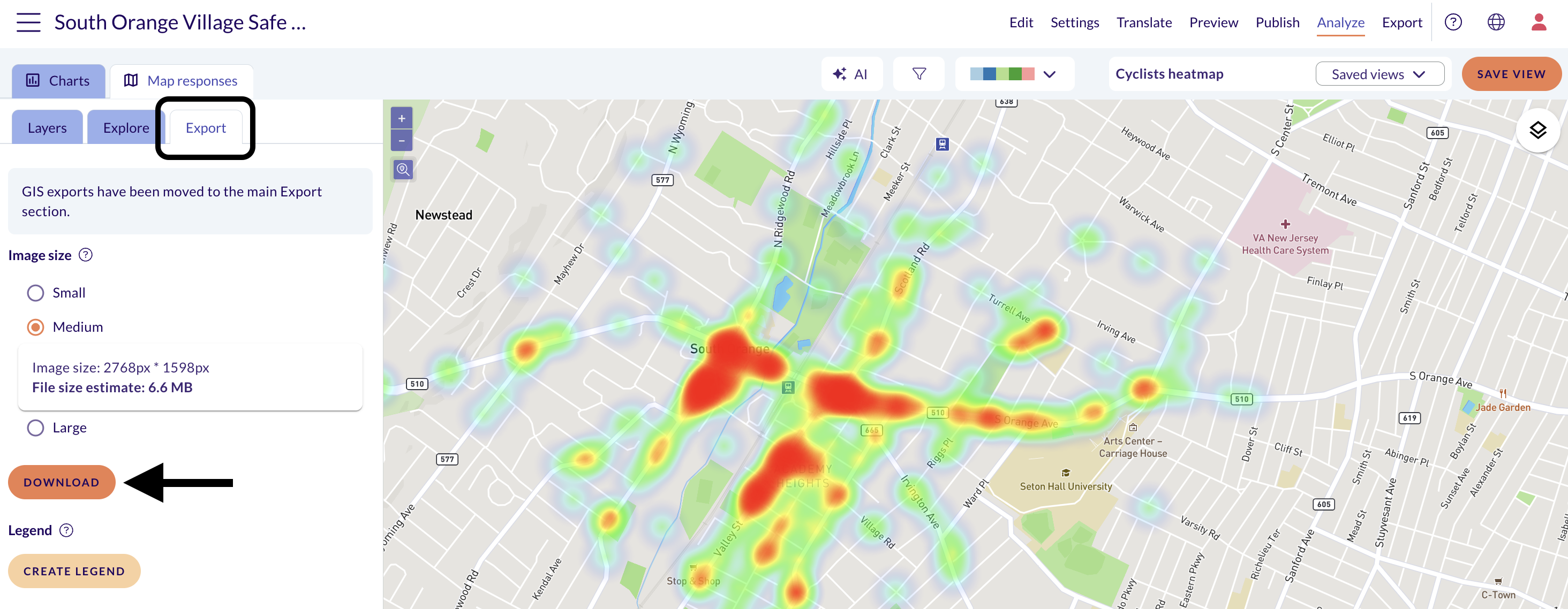

2. From the Export menu, download the map as an image.

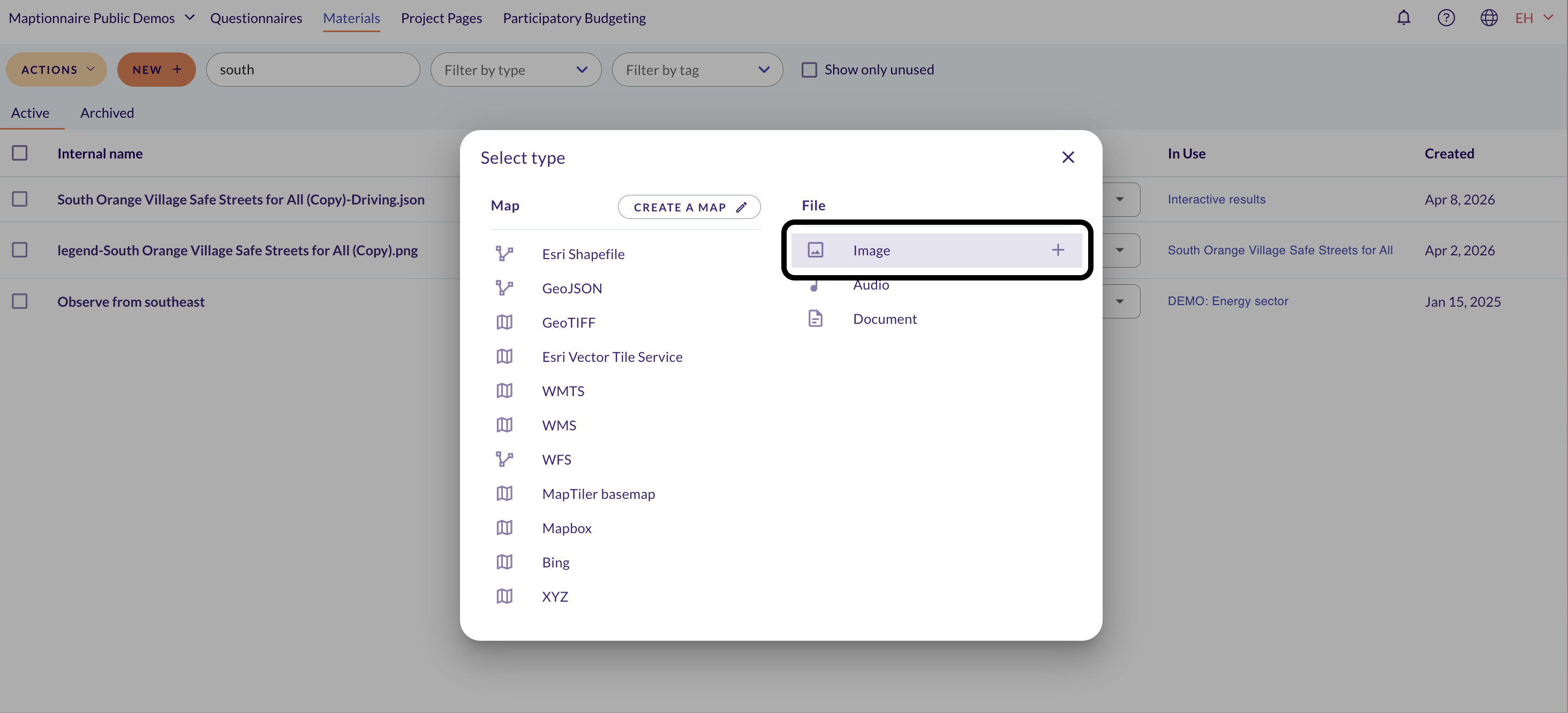

3. Add the image to your team's materials.

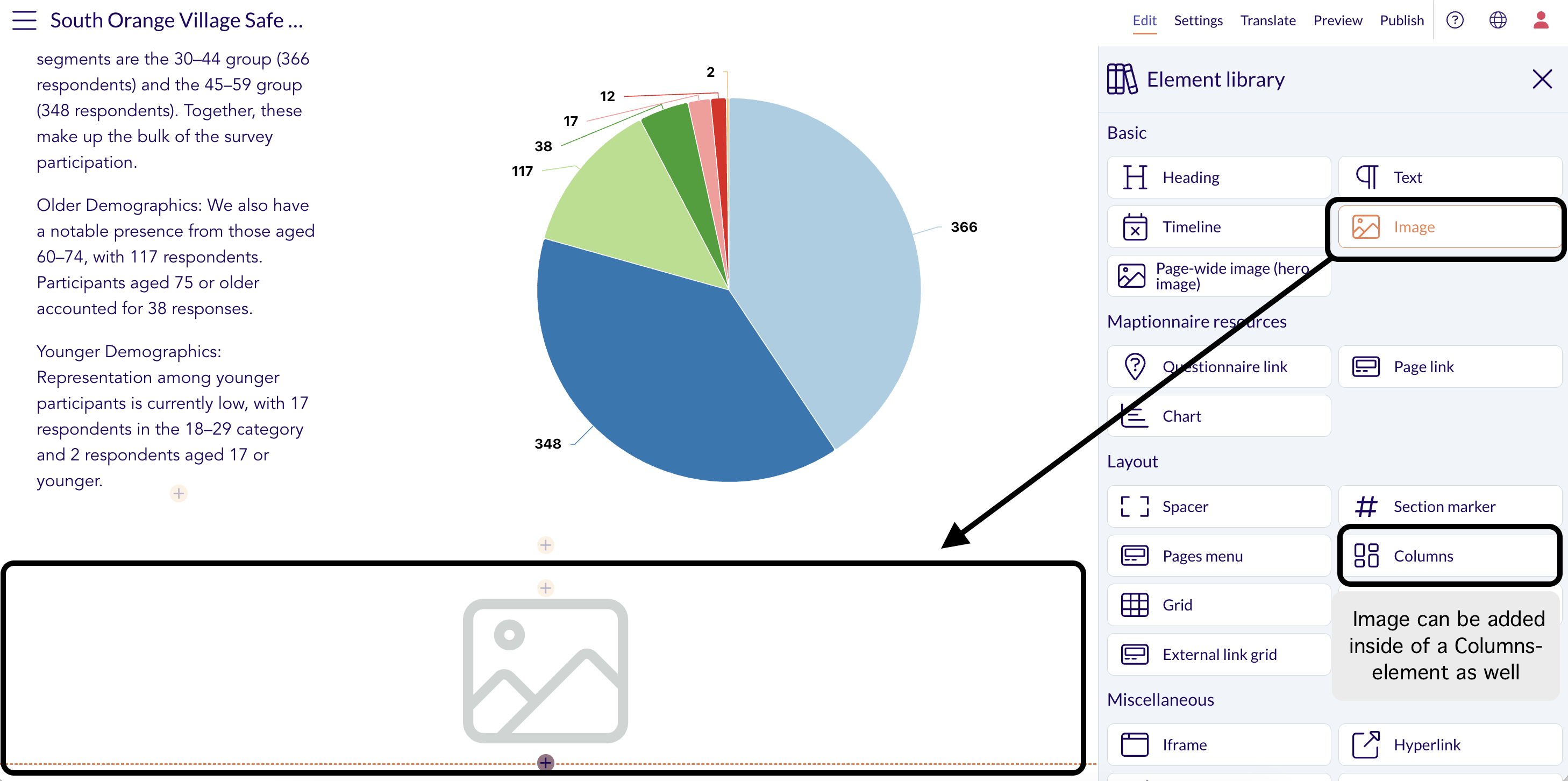

4. Add an image as an element to your Project Page.

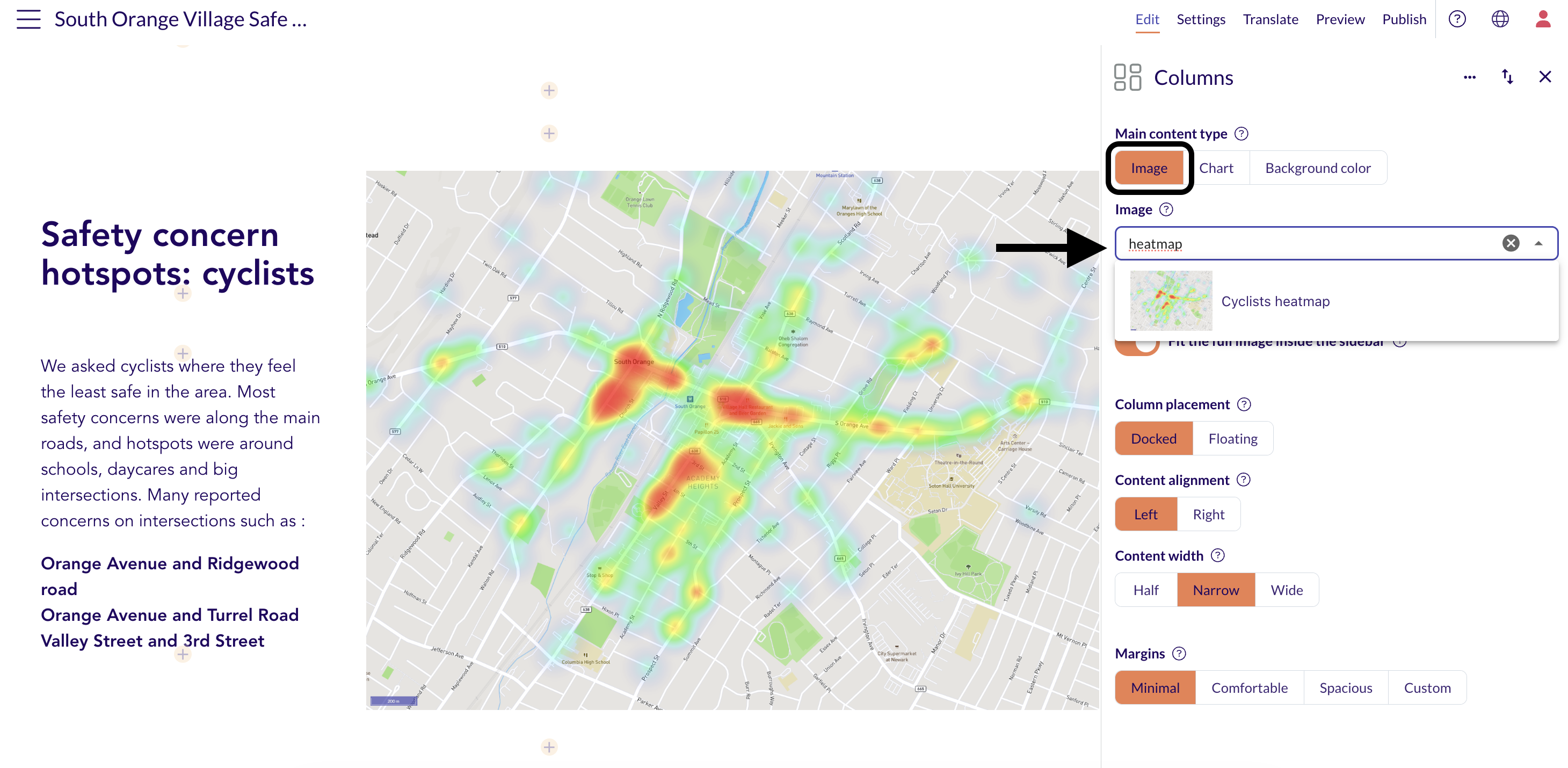

Choose the image of the map in the element. In this case we added it inside of a Columns-element:

Add an interactive map

You can also add an interactive map of the results data to your pages. This article shows you how.
