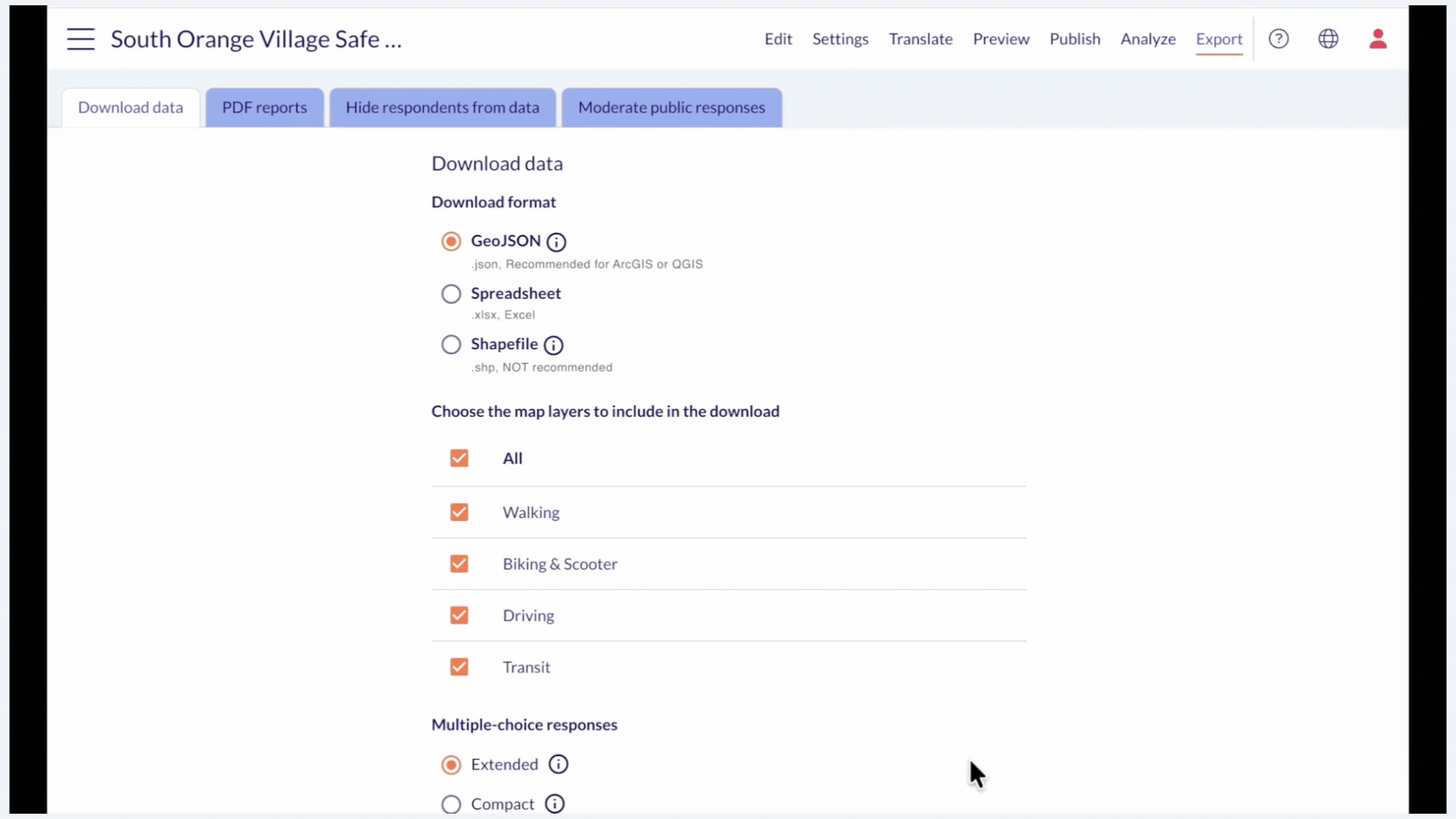

1. Go to Export and download the results that you want to feature on the map as geoJSON files.

    Support manual graphics.gif

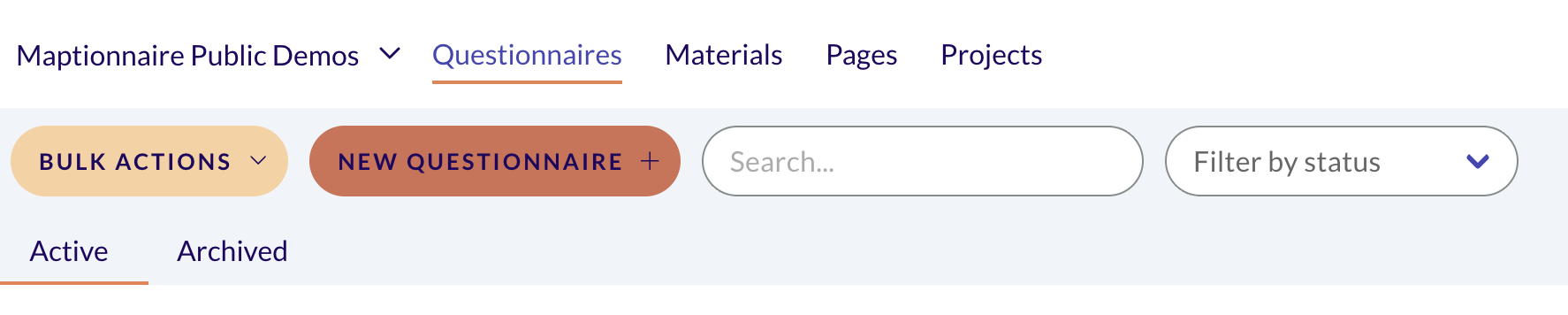

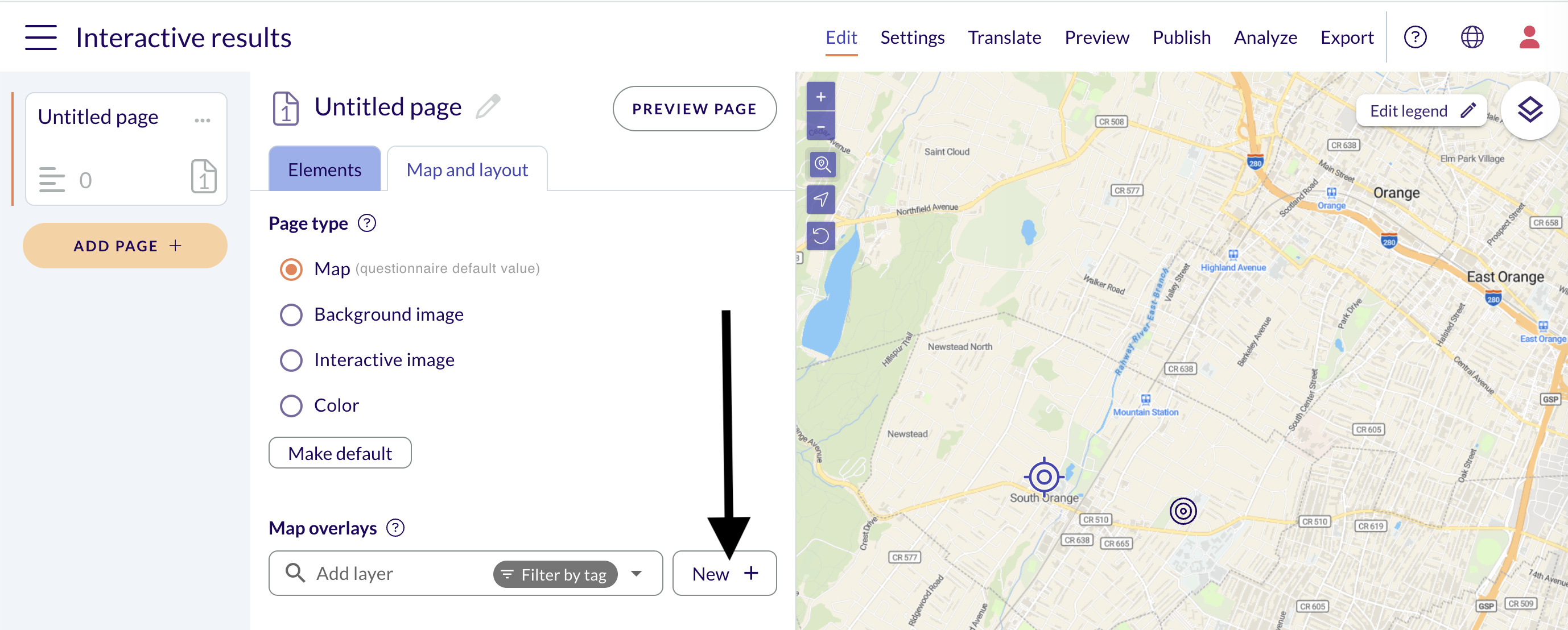

  2. Start a new survey.

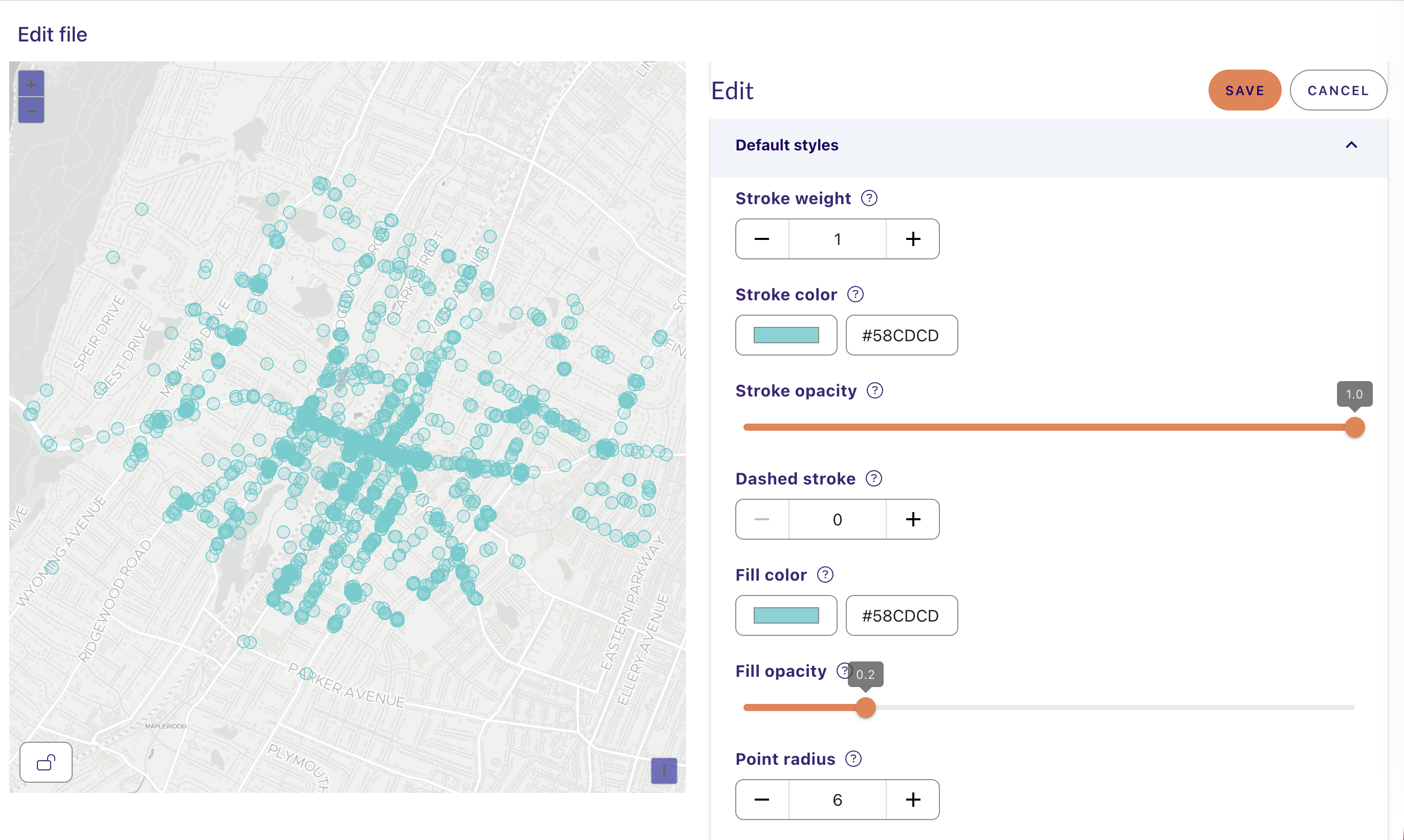

  3. Upload the geoJSONs and choose how to visualize them on the map. You can also add pop-up features.

    Screenshot 2026-04-08 at 11.58.38 AM.png

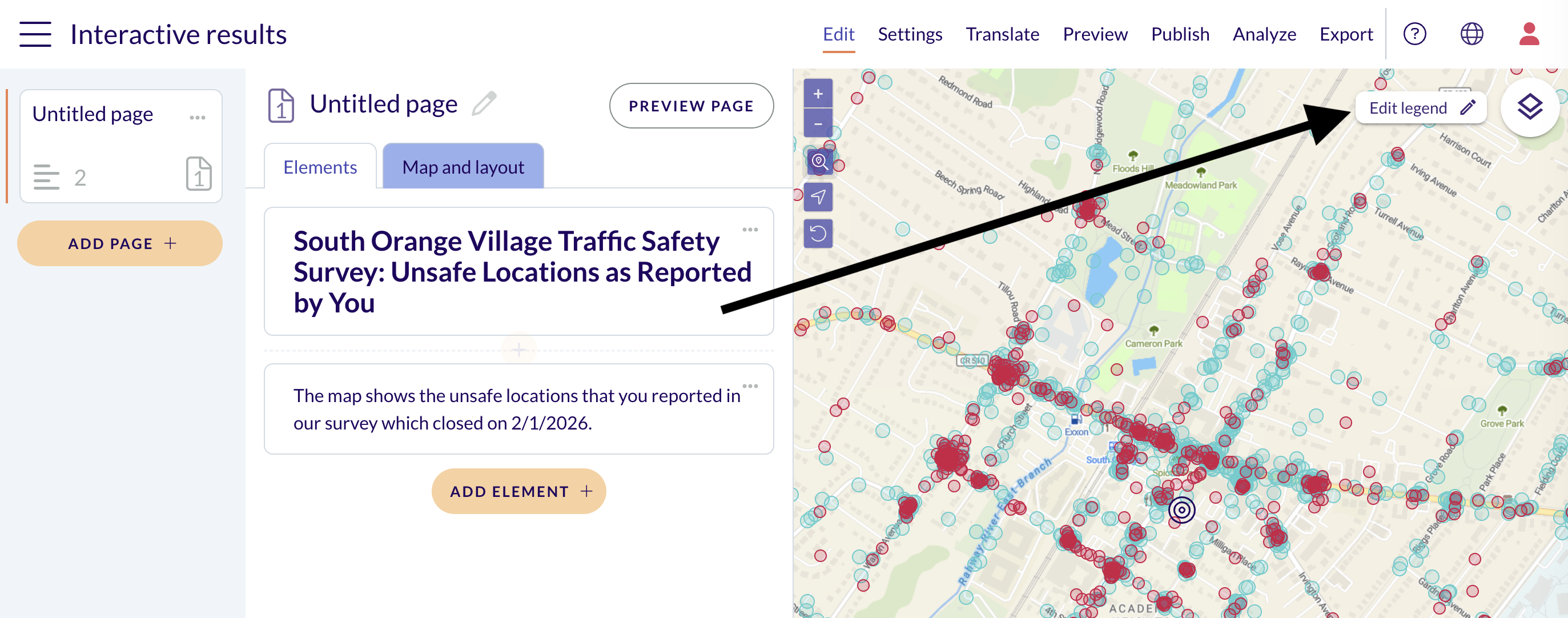

  4. Edit the map legend and decide if it should be open by default or not. Add any other features (e.g. text, images...) that you want to show.

    Screenshot 2026-04-08 at 12.03.10 PM.png
  5. Preview and publish the survey. Copy the URL.

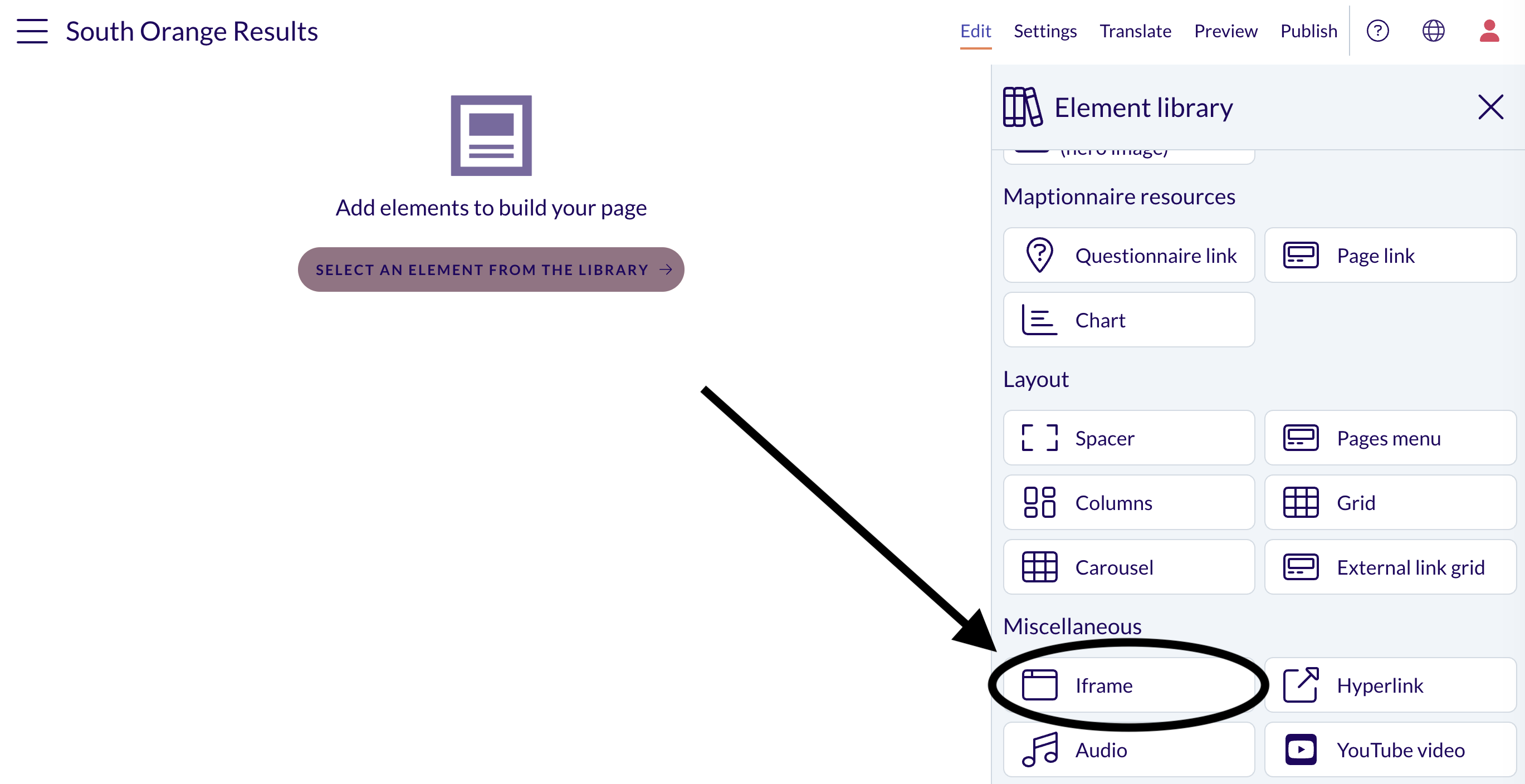

    Go to the page in Pages where you want to add the results map. Add the "Iframe" element from the library.

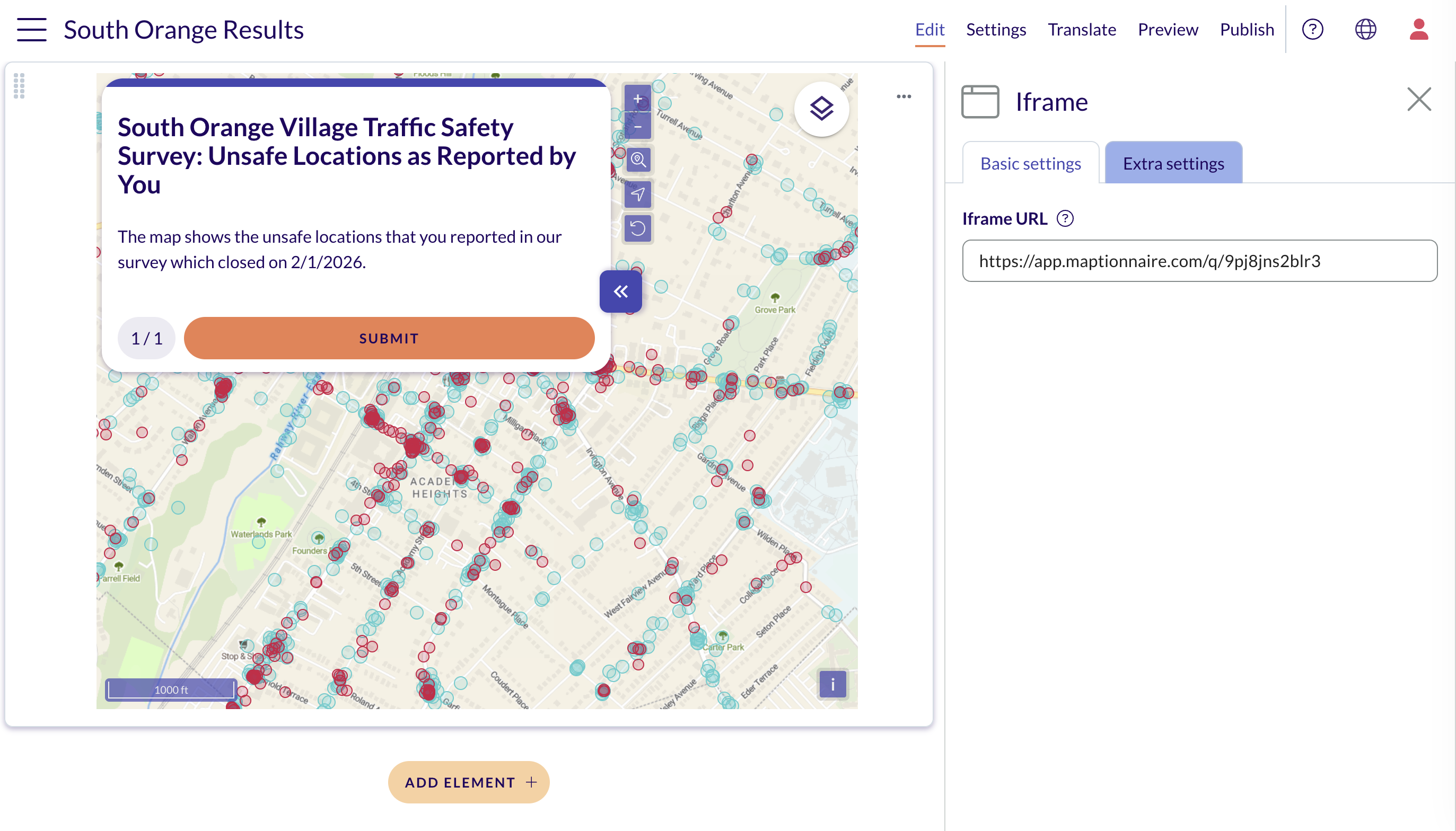

  6. Enter the URL of the survey. It should appear on the page draft.

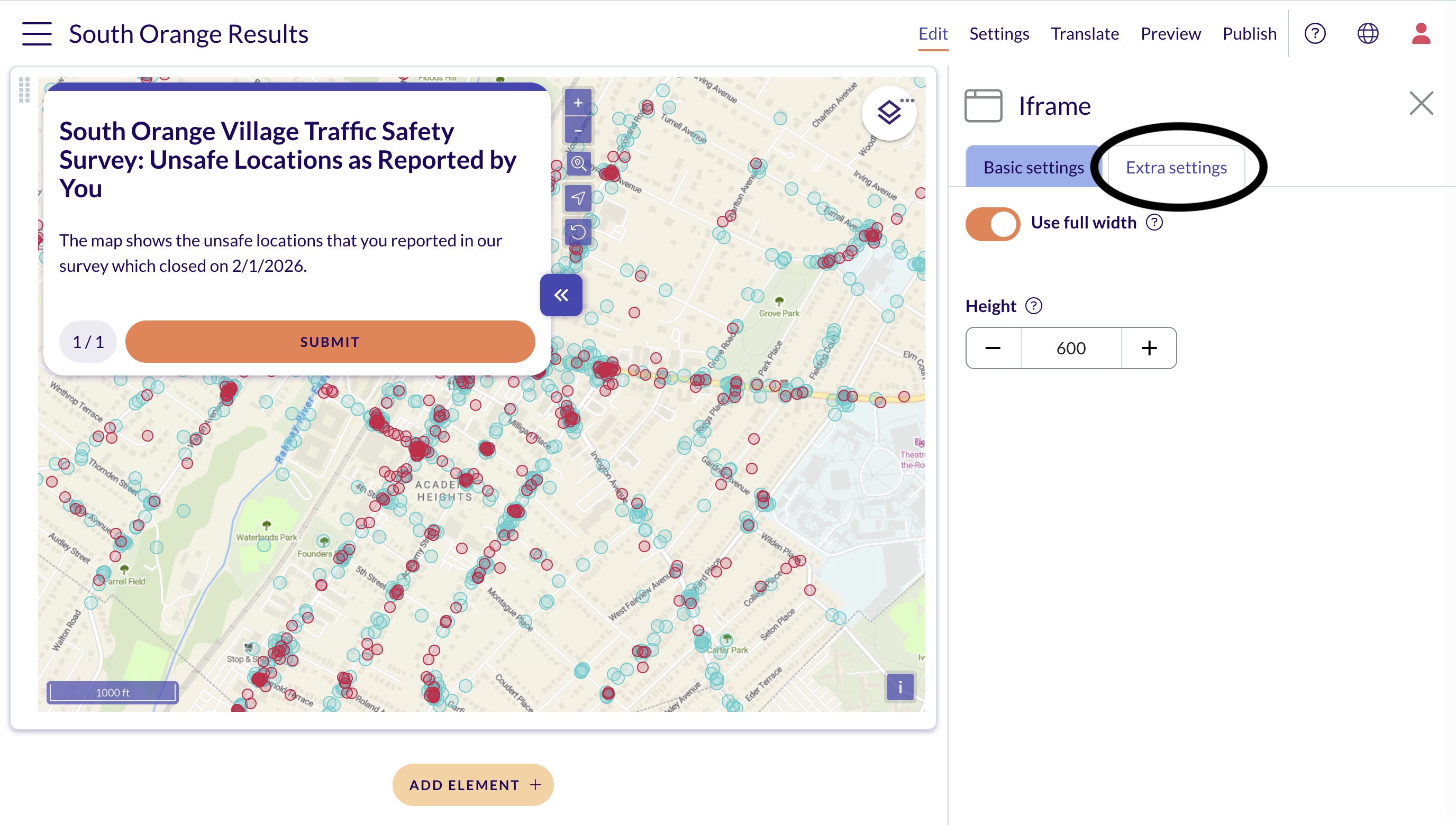

  7. Decide on the width and height of the embedded survey.

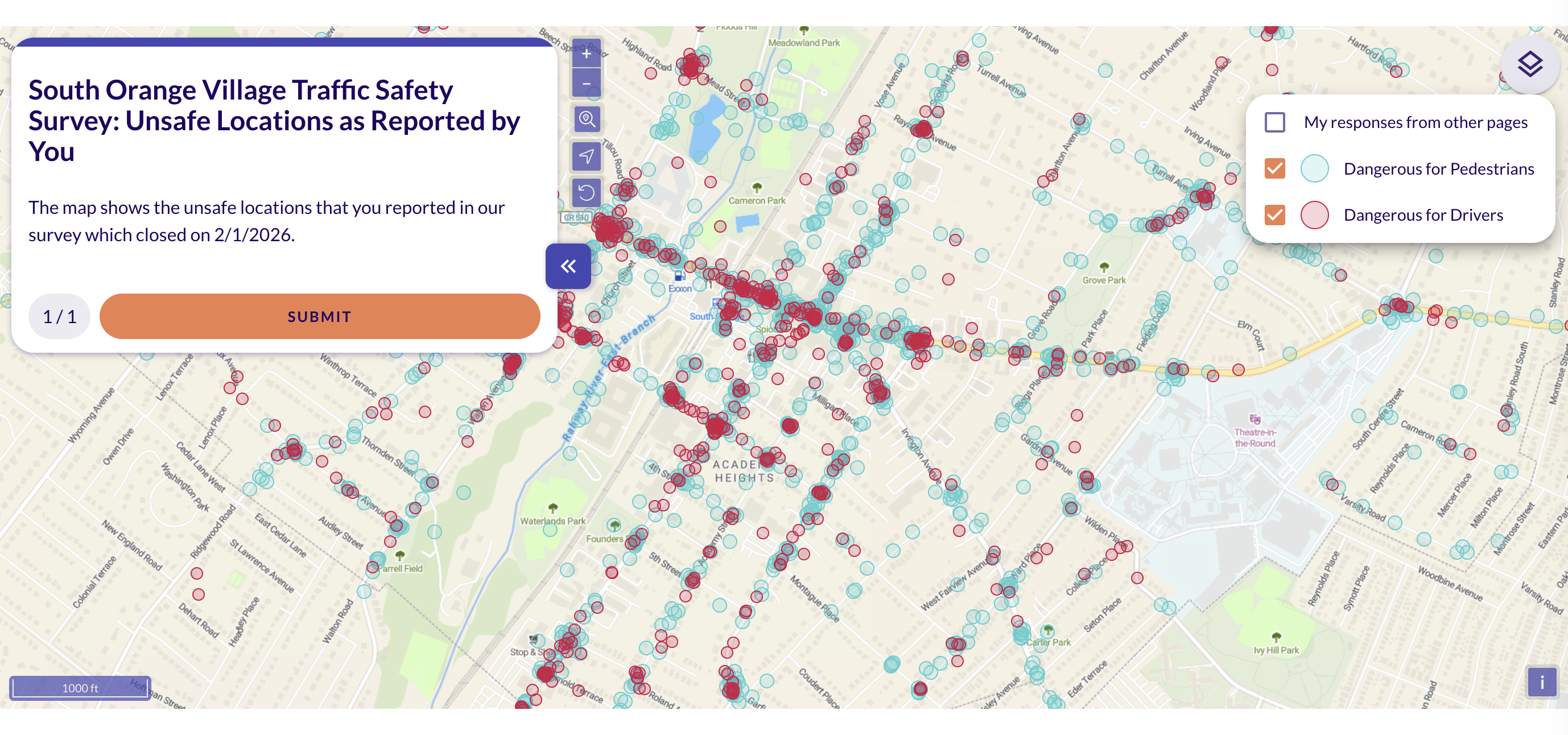

  8. Add any other content you want to have on the page. Preview and publish the page.

    Screenshot 2026-04-08 at 2.09.58 PM.png
