Use an image as the survey background

Background image (Classic surveys)

A background image can make your survey more attractive and reinforce your brand. Image banks like Unsplash have free images on many different themes.

  1. Select the page in the page list and click Page settings above the page.

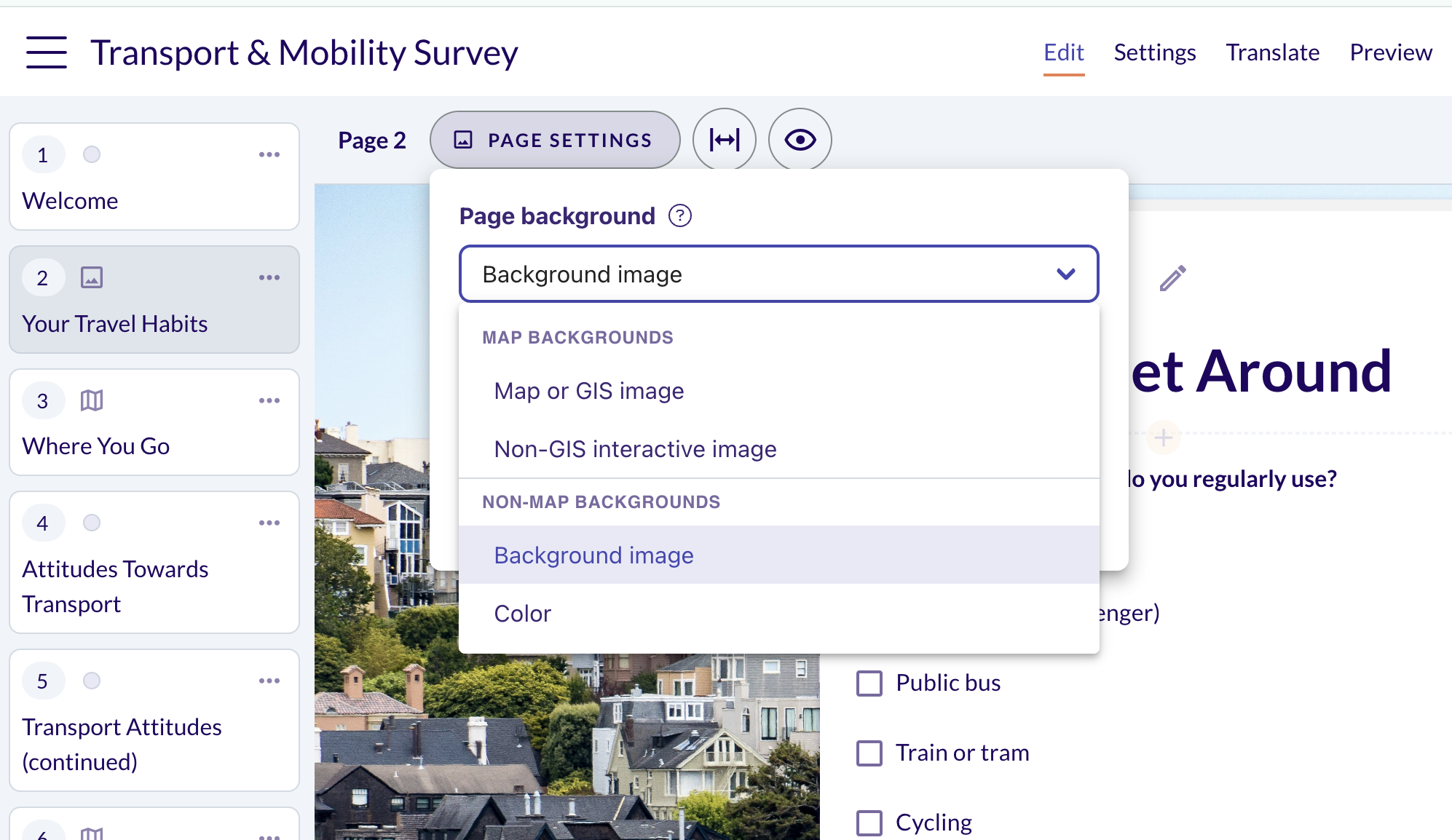

    Screenshot 2026-10-06 at 5.28.42 PM.png
  2. Under Page background, choose Background image.
  3. Under Background images, pick an image with Add image (if it's already in Materials), or click New to upload one from your computer. The recommended dimensions are max. 1920×1080 (the most common laptop screen size) and min. 1280×800 (budget laptop screen size).

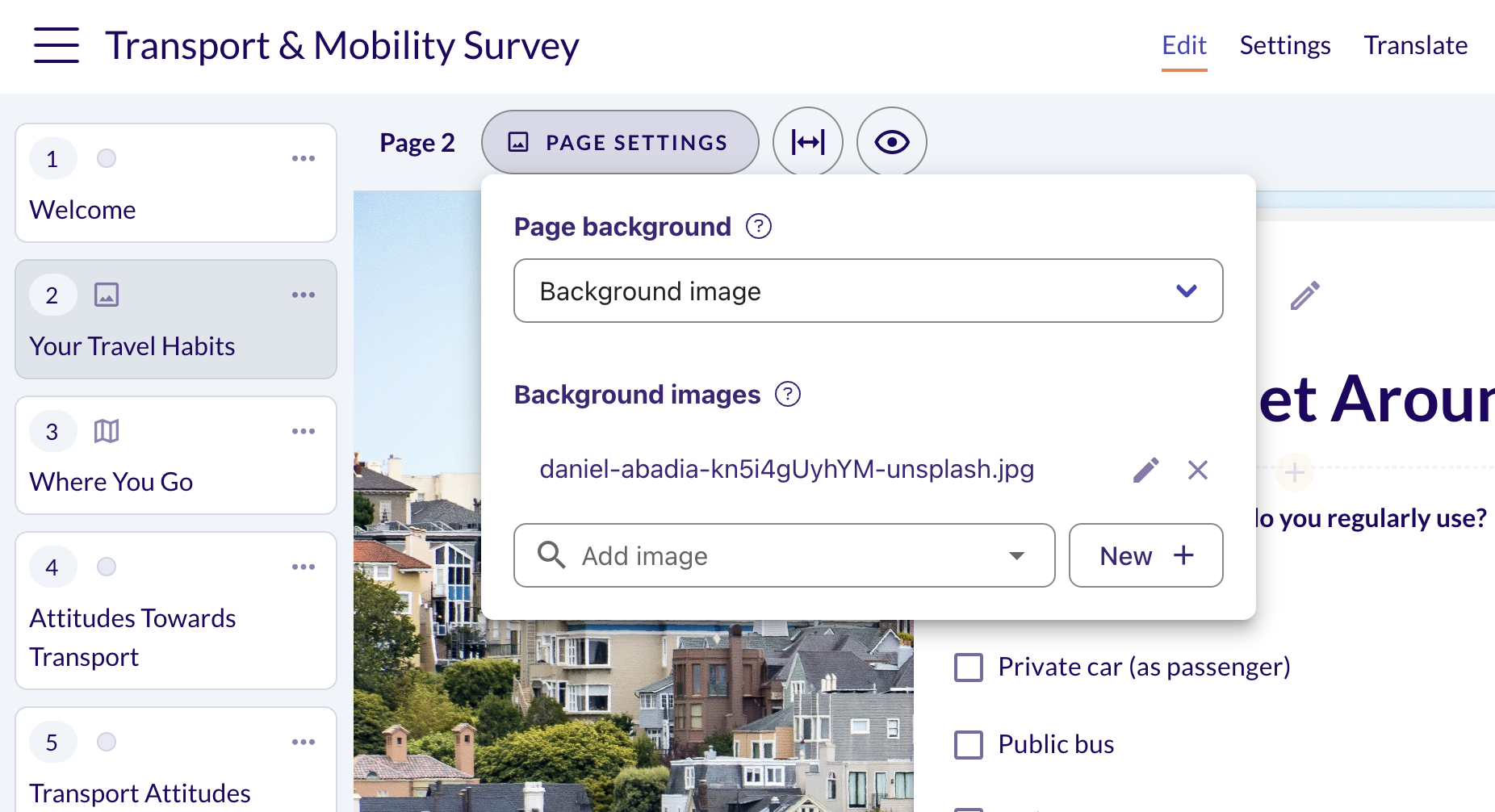

    Screenshot 2026-10-06 at 5.28.53 PM.png



  4. Preview the page. Background images aren't visible to respondents answering on a smartphone. If you want them to see it, add it to the survey form as well.
Non-GIS interactive image  (Classic surveys)

A Non-GIS interactive image is an image (e.g. PNG, JPG) that respondents can draw or place pins on, just like on a map. The image has no geographic location, so responses don't have coordinates. As a rule of a thumb, if you can layer an image on a map, you should and can do that easily in Maptionnaire by georeferencing the image – see this article for additional details.

Before you use an interactive image

  • Think about how you want to use the data. Image files have pixels, not coordinates, so the responses can't be taken to GIS software. You can still look at them in Maptionnaire's analysis tool (example below).
  • Using a plan image? Layer it on a map instead: georeference the image or upload it in vector format (e.g. shp). That way the responses get geographic coordinates. See Set up map elements in your survey.
Set-up for Classic surveys:
  1. Select the page in the page list and click Page settings above the page.

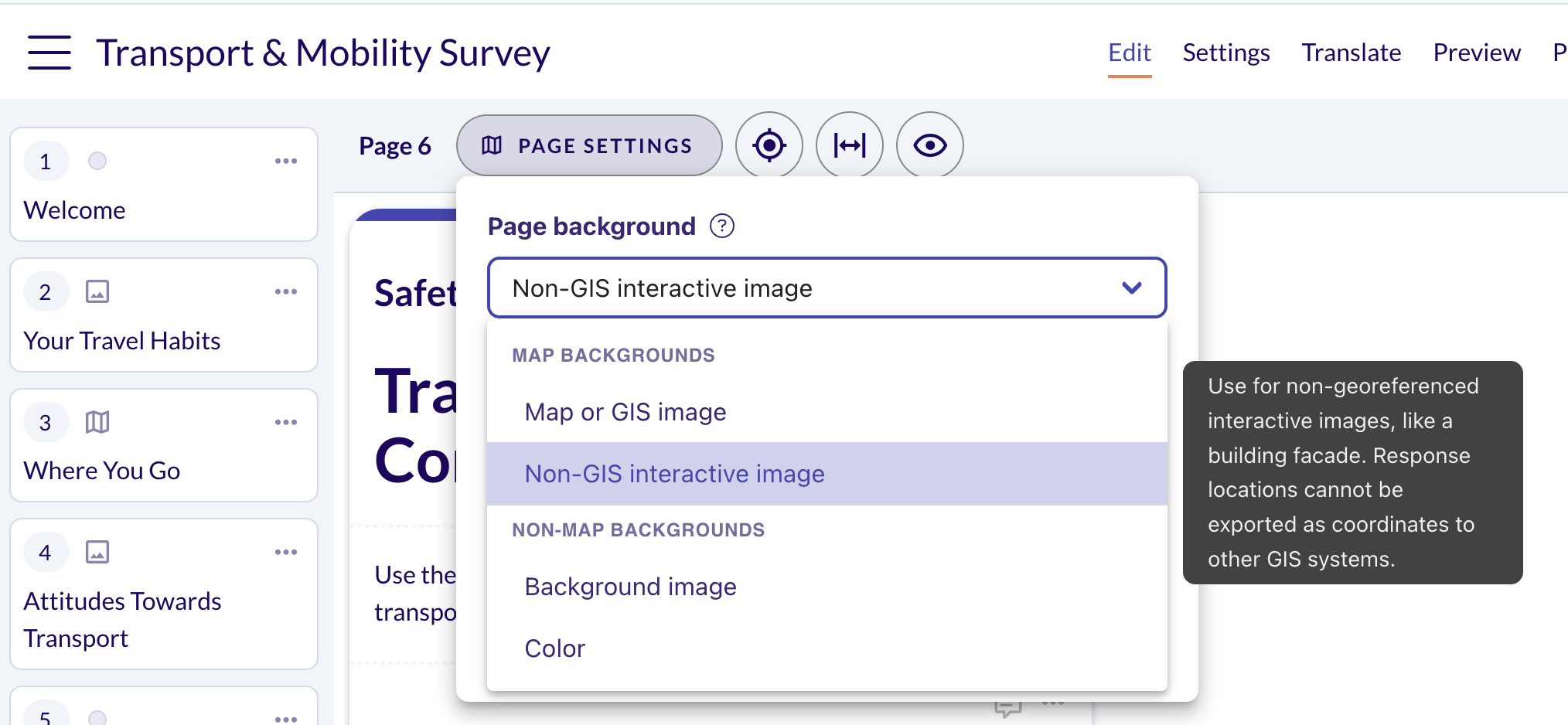

    Screenshot 2026-10-06 at 5.31.54 PM.png
  2. Under Page background, choose Non-GIS interactive image.
  3. Under Interactive image, pick an image with Add image (if it's already in Materials), or click New to upload one. The recommended dimensions are max. 1920×1080 and min. 1280×800.

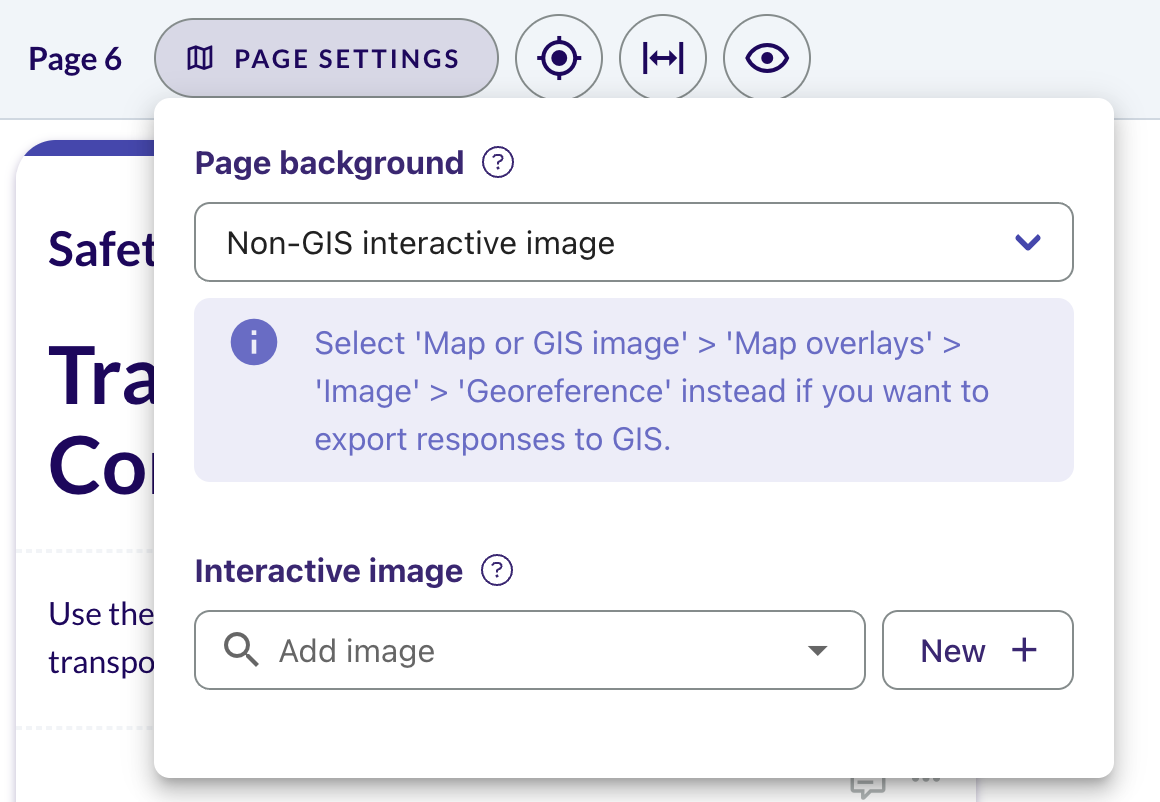

    Screenshot 2026-10-06 at 5.32.24 PM.png



  4. Set the view respondents see when they open the page: move and zoom the image, click the target icon above the page to open Default view, and click Set.

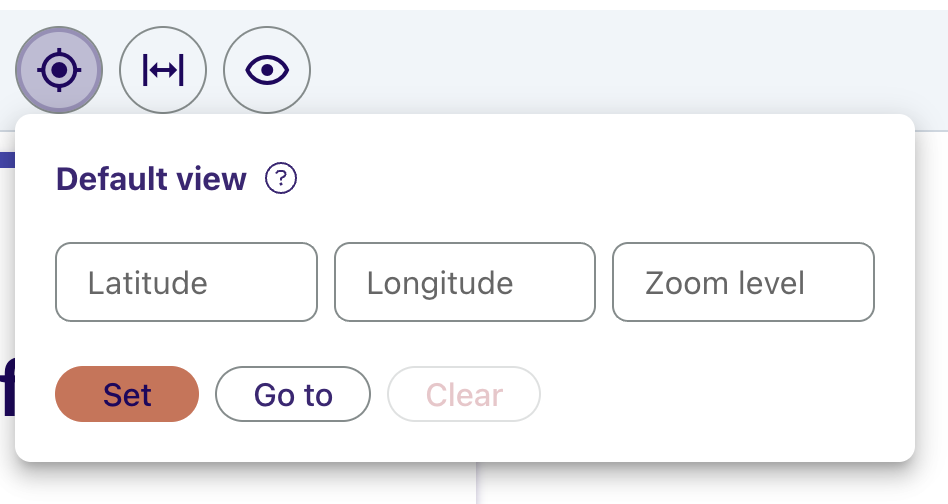

    Screenshot 2026-10-06 at 5.33.28 PM.png



  5. To rename the image in the legend or hide it from the legend, click Edit legend in the top right corner of the editor.

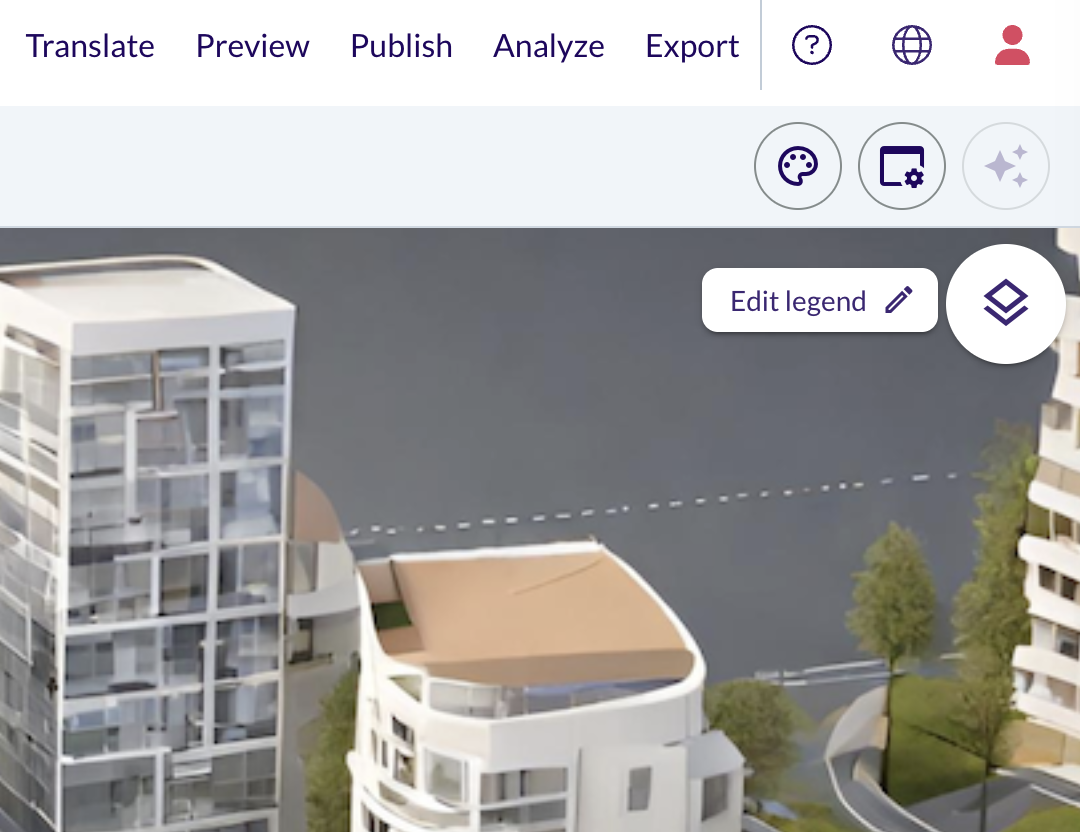

    Screenshot 2026-10-06 at 5.34.27 PM.png



  6. Preview the page.
Non-GIS interactive image (Scrollable surveys)

A Non-GIS interactive image is an image (e.g. PNG, JPG) that respondents can draw or place pins on, just like on a map. The image has no geographic location, so responses don't have coordinates. As a rule of a thumb, if you can layer an image on a map, you should and can do that easily in Maptionnaire by georeferencing the image – see this article for additional details.

Before you use an interactive image

  • Think about how you want to use the data. Image files have pixels, not coordinates, so the responses can't be taken to GIS software. You can still look at them in Maptionnaire's analysis tool (example below).
  • Using a plan image? Layer it on a map instead: georeference the image or upload it in vector format (e.g. shp). That way the responses get geographic coordinates. See Set up map elements in your survey.
  1. Open Element Library and choose Interactive Image.



  2. Choose or upload the image that you want to show. Note that unlike the Map element, an Interactive Image element can only show one image, even if it has multiple cards with questions/other content.



  3. Set the preferred zoom level.

  4. Add the question(s) or other content to the card.



  5. Preview.
