Limit where users can mark on a map (Masking layer)

Define where map pins (or lines/areas) can be placed by respondents. Works also the other way around i.e. define areas where maps pins cannot be placed.

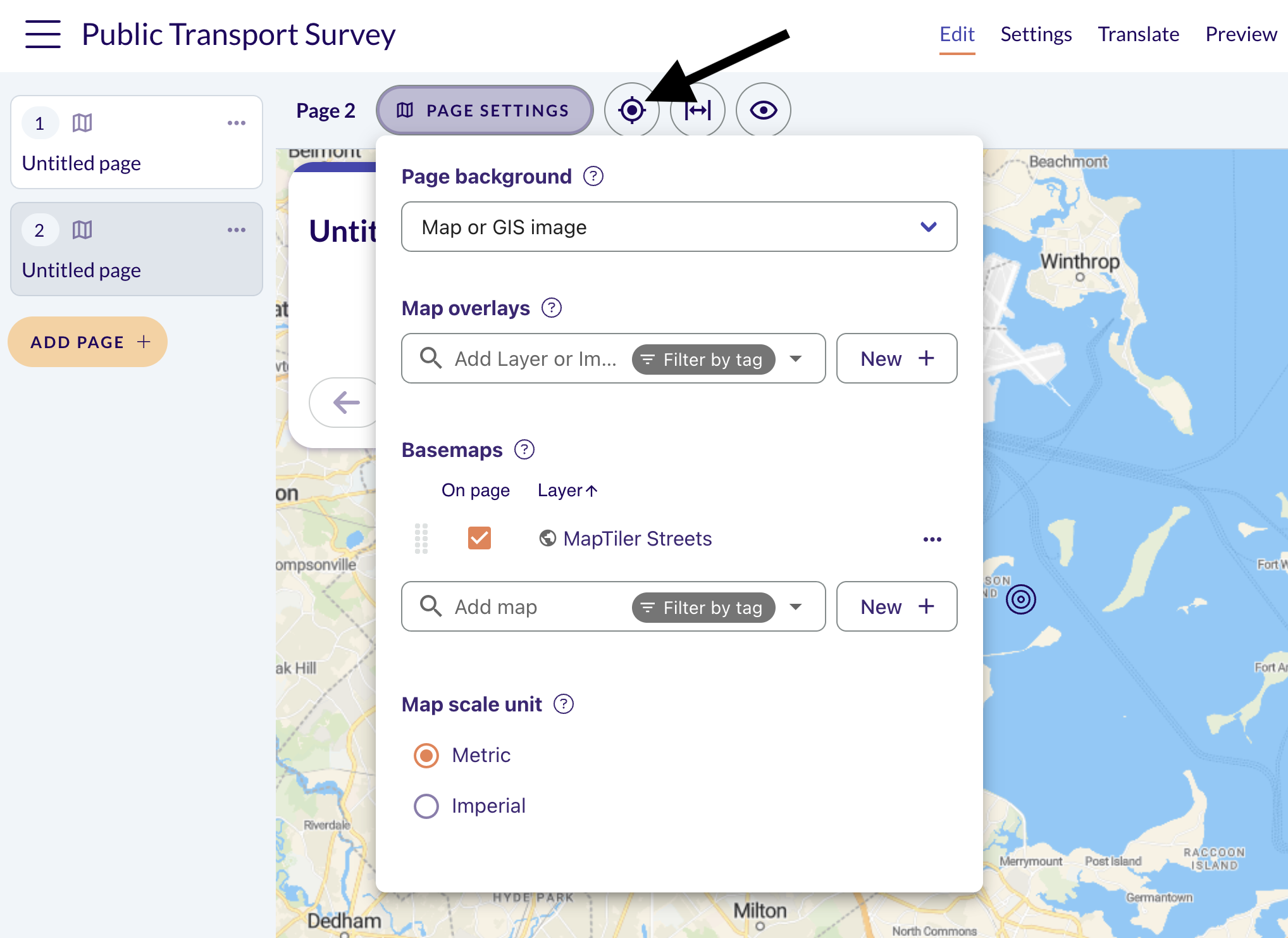

  1. On the survey page where you want to add it, open Page settings. Click New to upload the map file (shp, geoJSON, WFS) or to create it from scratch.

    Screenshot 2026-10-15 at 15.50.31.png



    Using a Scrollable survey? Click the map icon next to the card where you want to add it instead of Page settings. The panel that opens has the same Map overlays section.

    Screenshot 2026-11-04 at 15.13.38.png
  2. Set the stroke and fill color and opacity for the layer. Save the layer.

  3. You should be directed back to the survey automatically. Select the layer from under Map overlays.

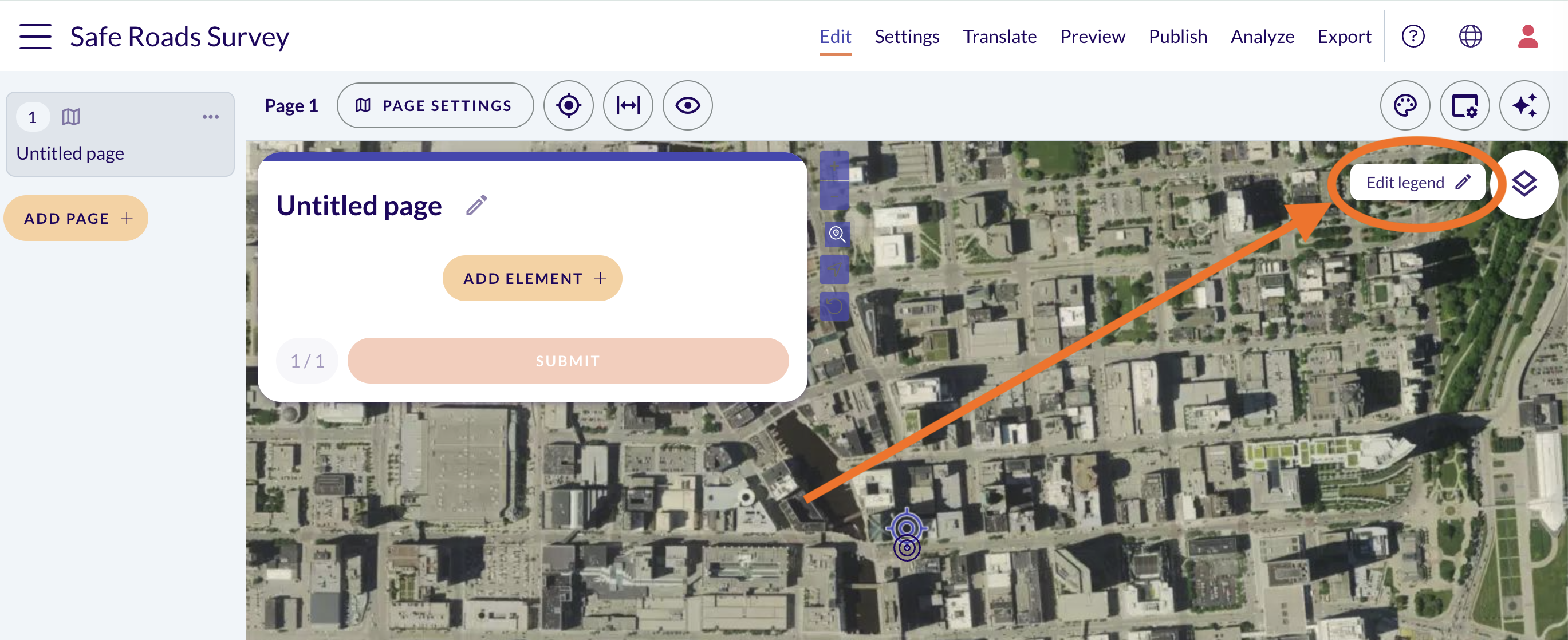

  4. Edit the name of the layer in the legend (or hide it from the map view altogether).

    Screenshot 2026-10-06 at 4.26.12 PM.png

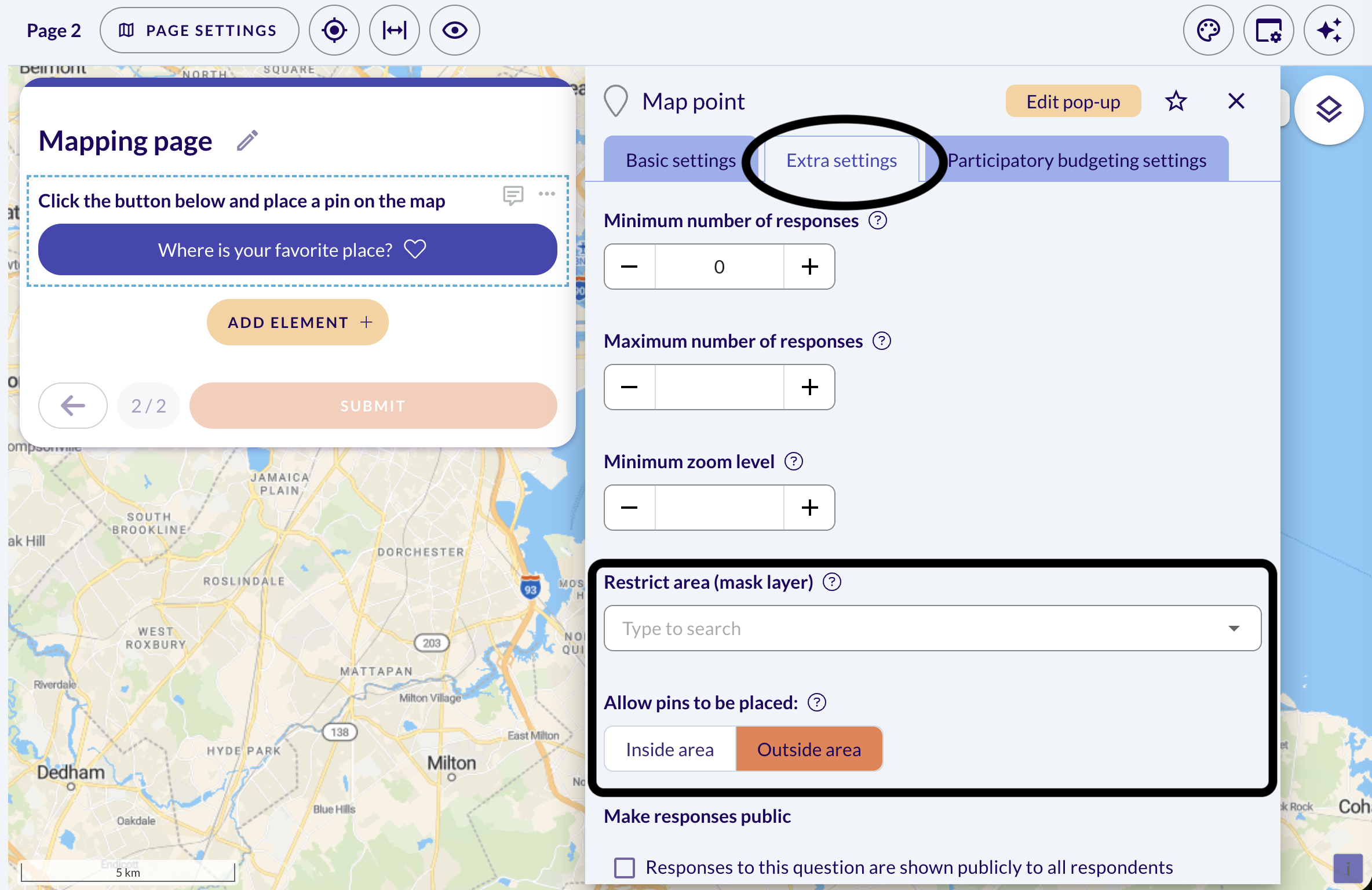

  5. Go to the map question's Extra settings tab.
  6. Select the map layer under Restrict area. Select if the pins should be allowed to be placed inside or outside the area.

    Screenshot 2026-10-15 at 16.02.22.png
