Map point, line and area questions

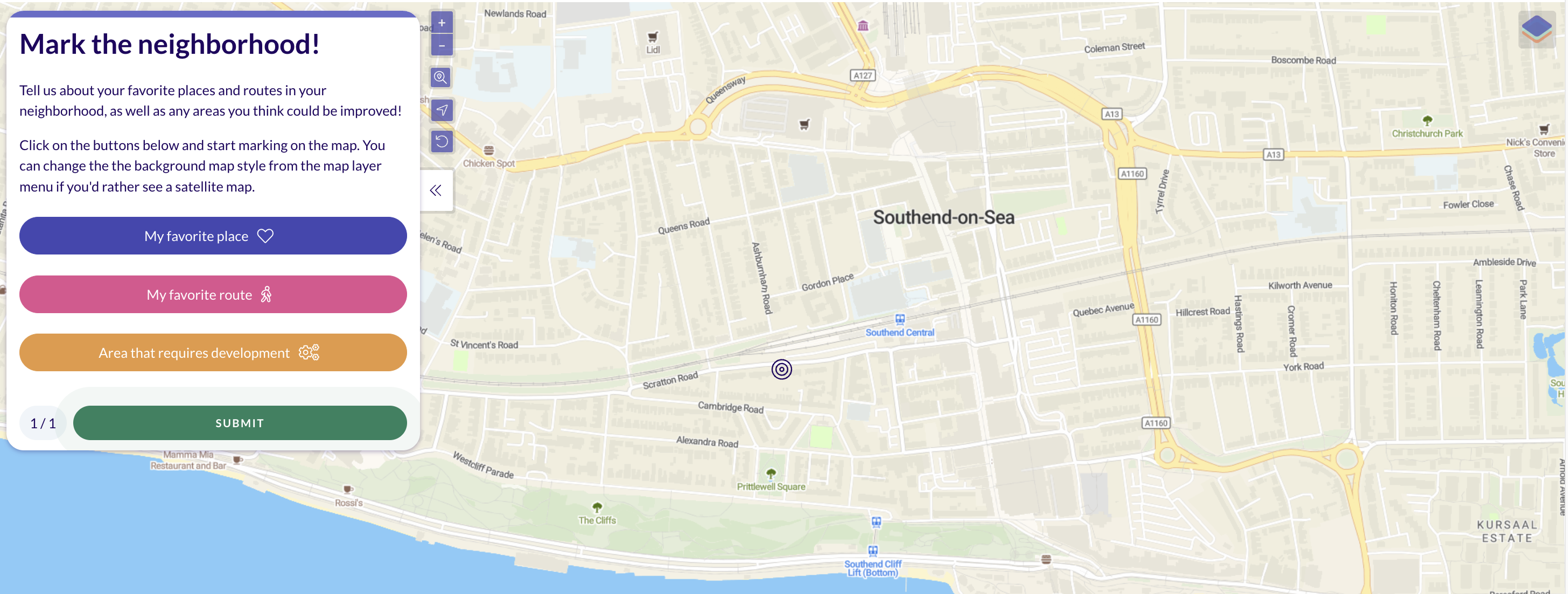

• Map point: Respondent marks a location on the map with a pin. The easiest map question that can be used to ask almost anything related to maps.
• Map line: Respondent draws a line, typically a route, on the map.

• Map area: Respondent draws an area on the map. This works best in surveys where the focus is on a large area. On projects with a smaller geographical scale (e.g. re-design a park), the Map point is often a better option as there won't be as much overlap between the areas that respondents draw.

  ---

Add a map question to your survey:

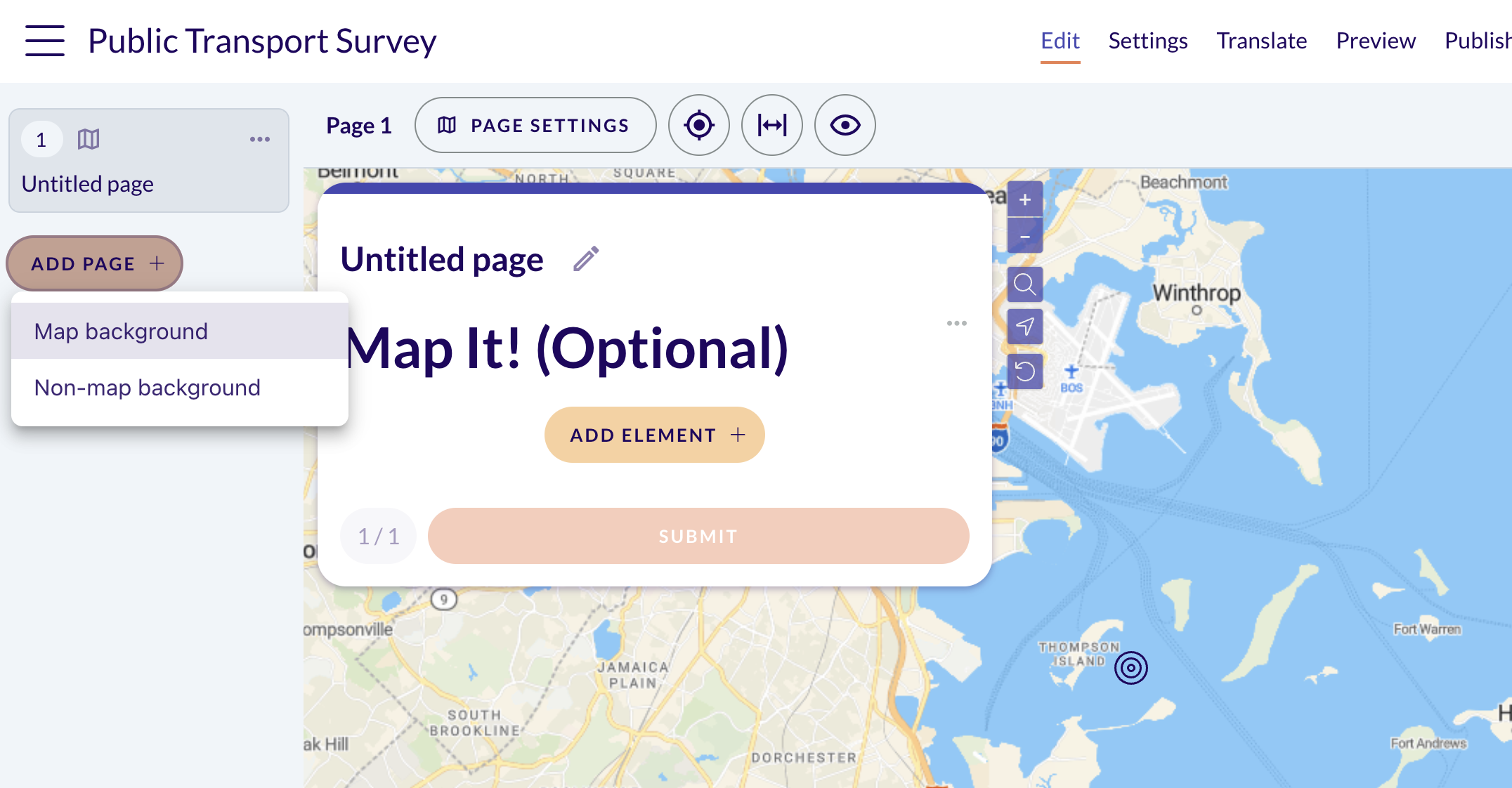

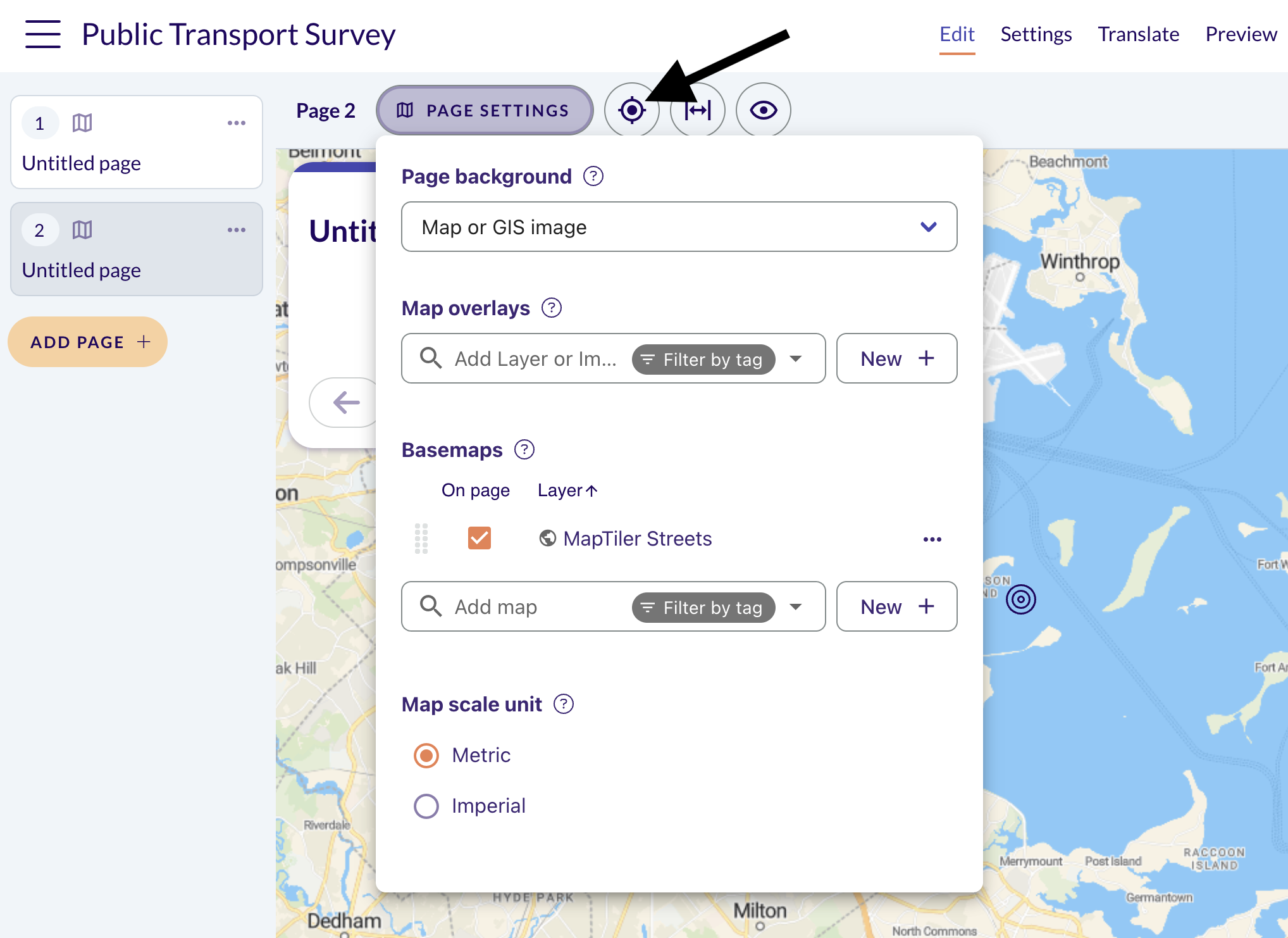

1. Add a background map to the questionnaire page (instructions).

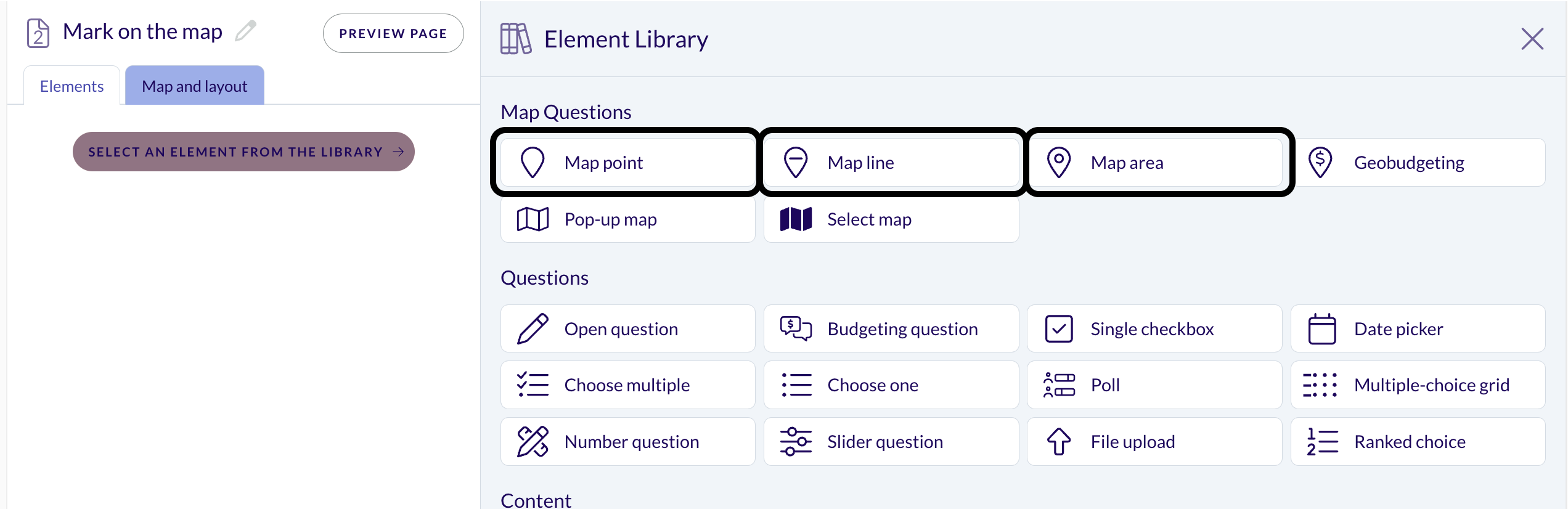

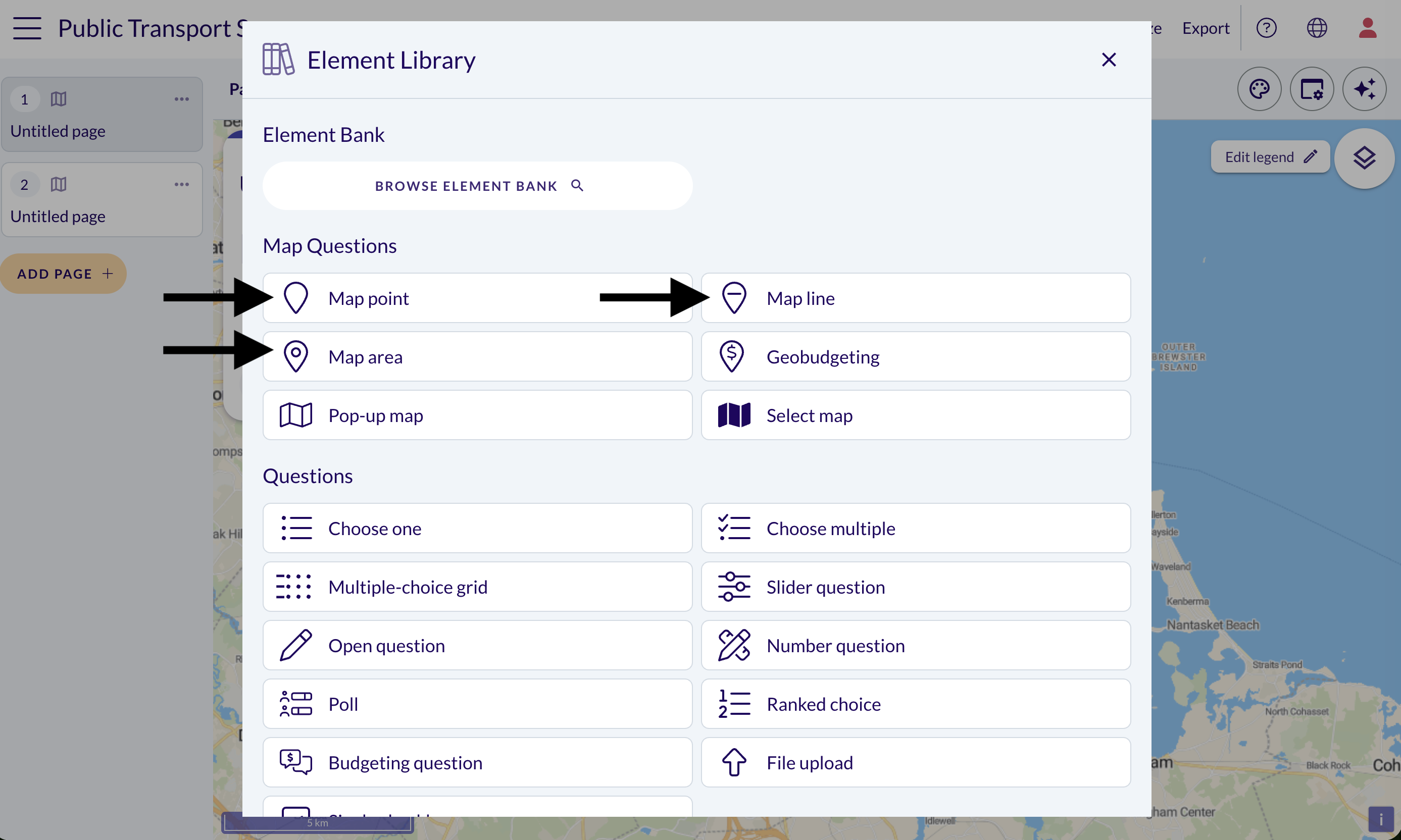

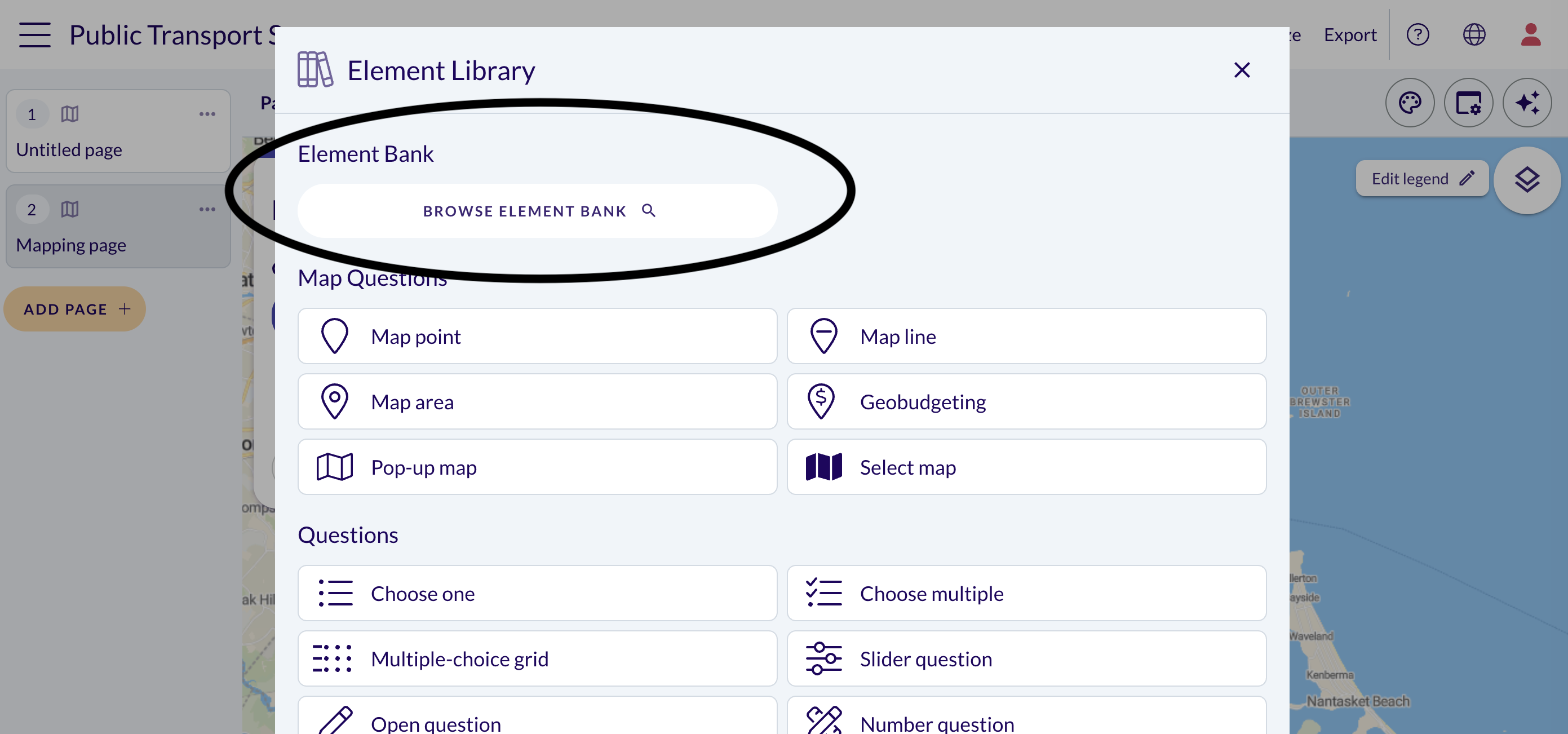

2. Add the map question from the element library.

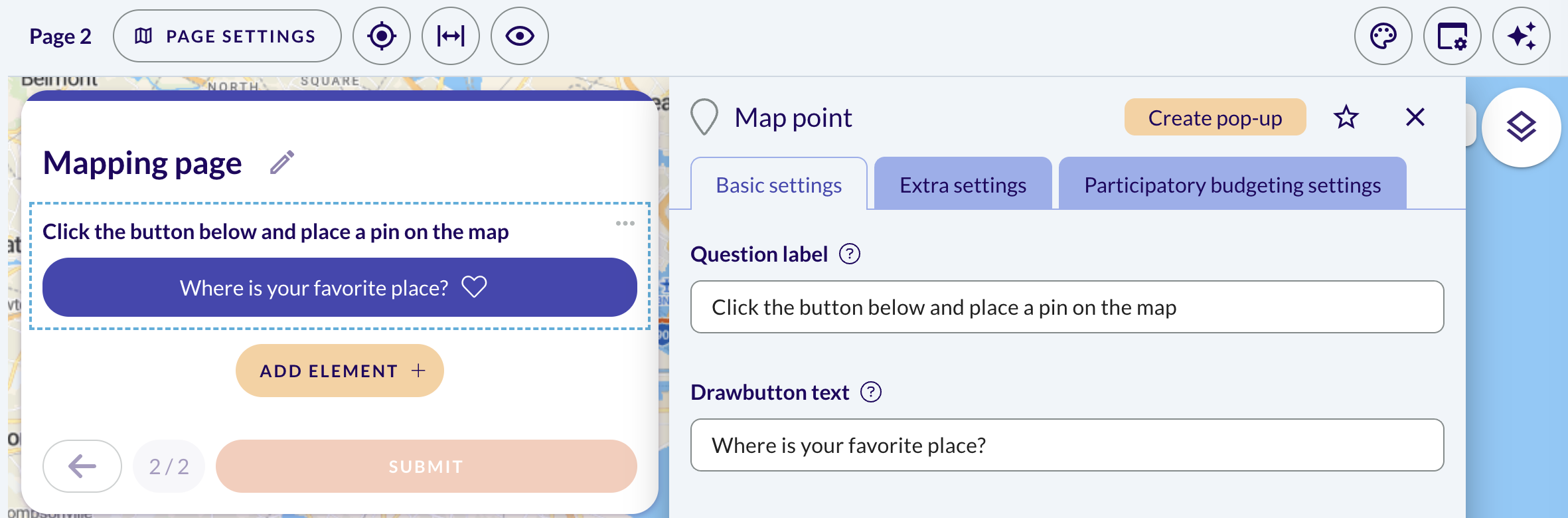

3. Write the question and the drawbutton text. Respondents click the drawbutton to start drawing on the map. Drawbuttons look like this in the survey:

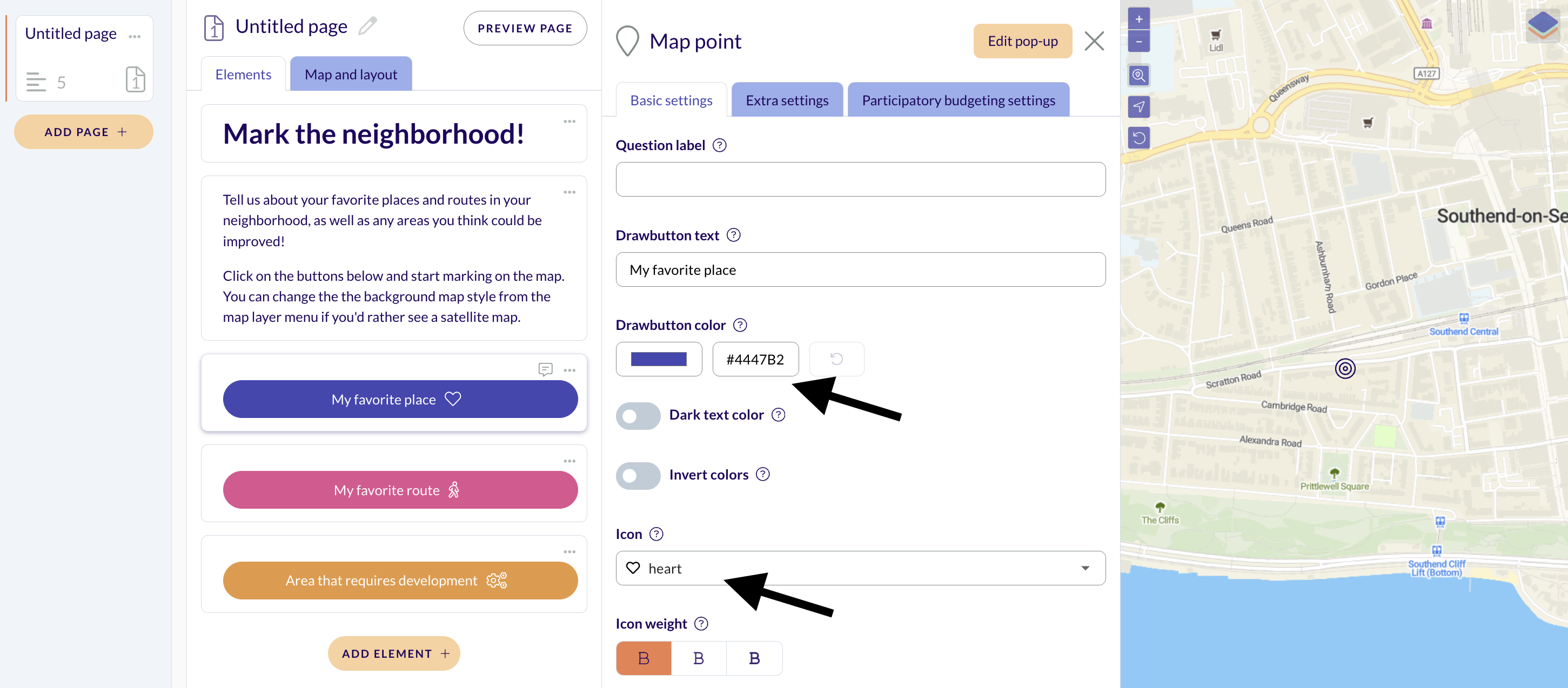

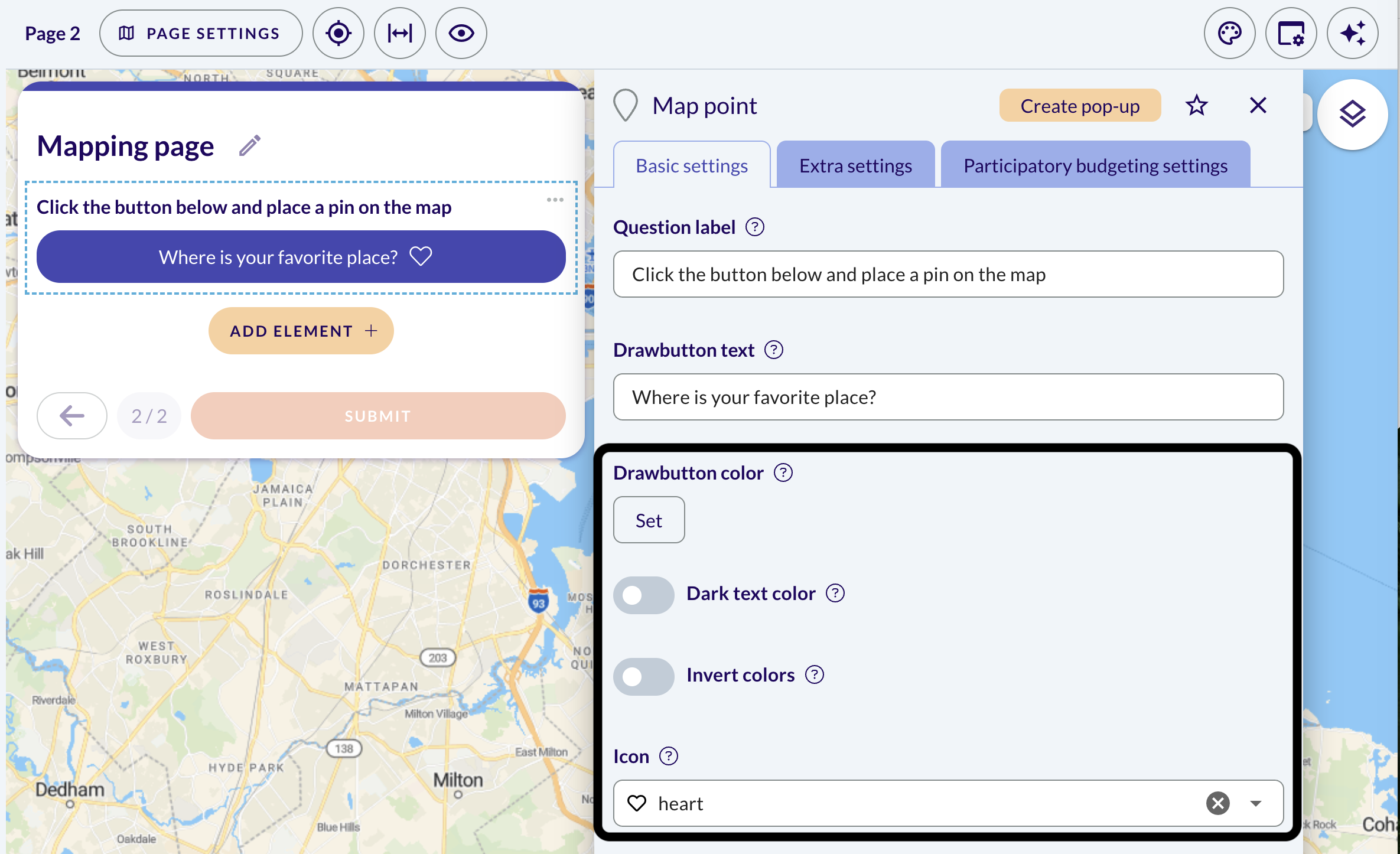

   Adjust the color of the button and add an icon to fit with the visual themes of your survey.

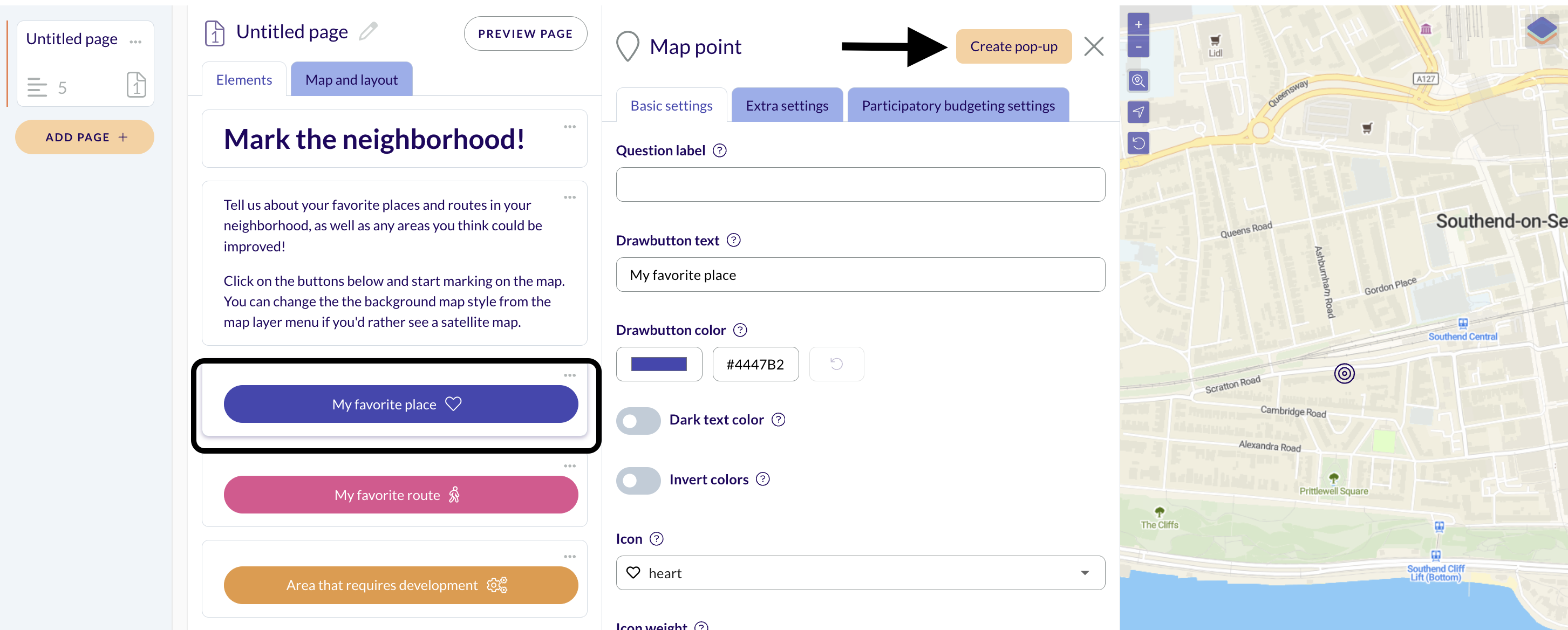

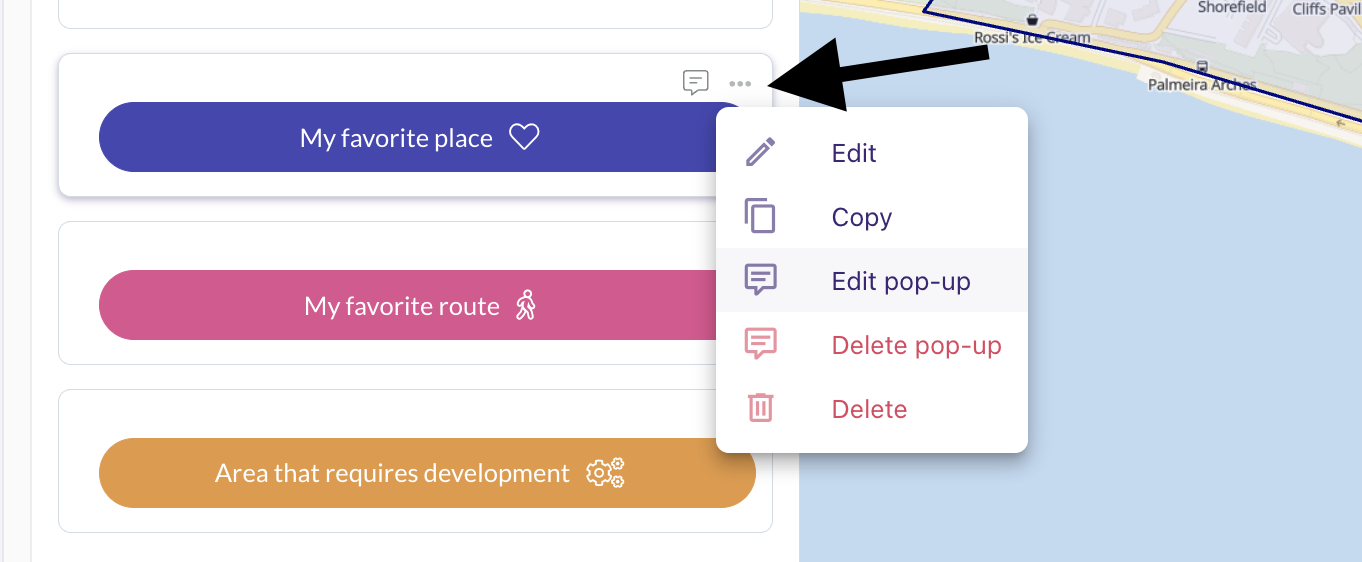

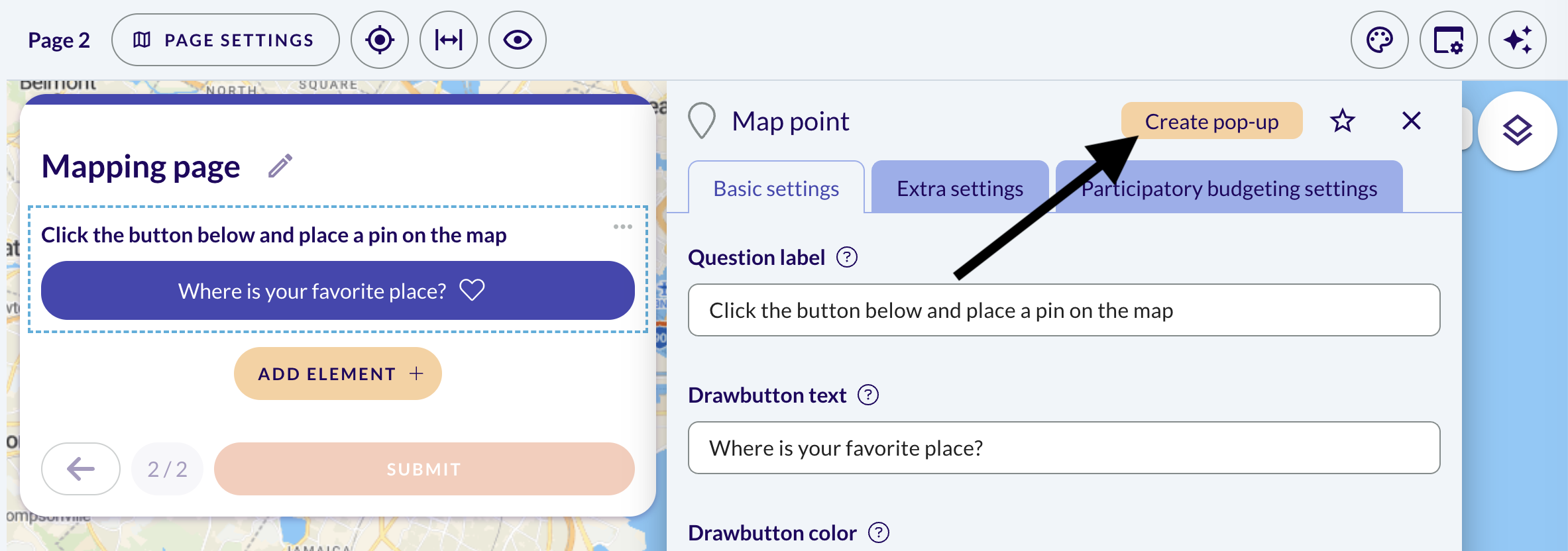

4. Click Create a pop-up to ask respondents further questions about the locations they mark/draw.

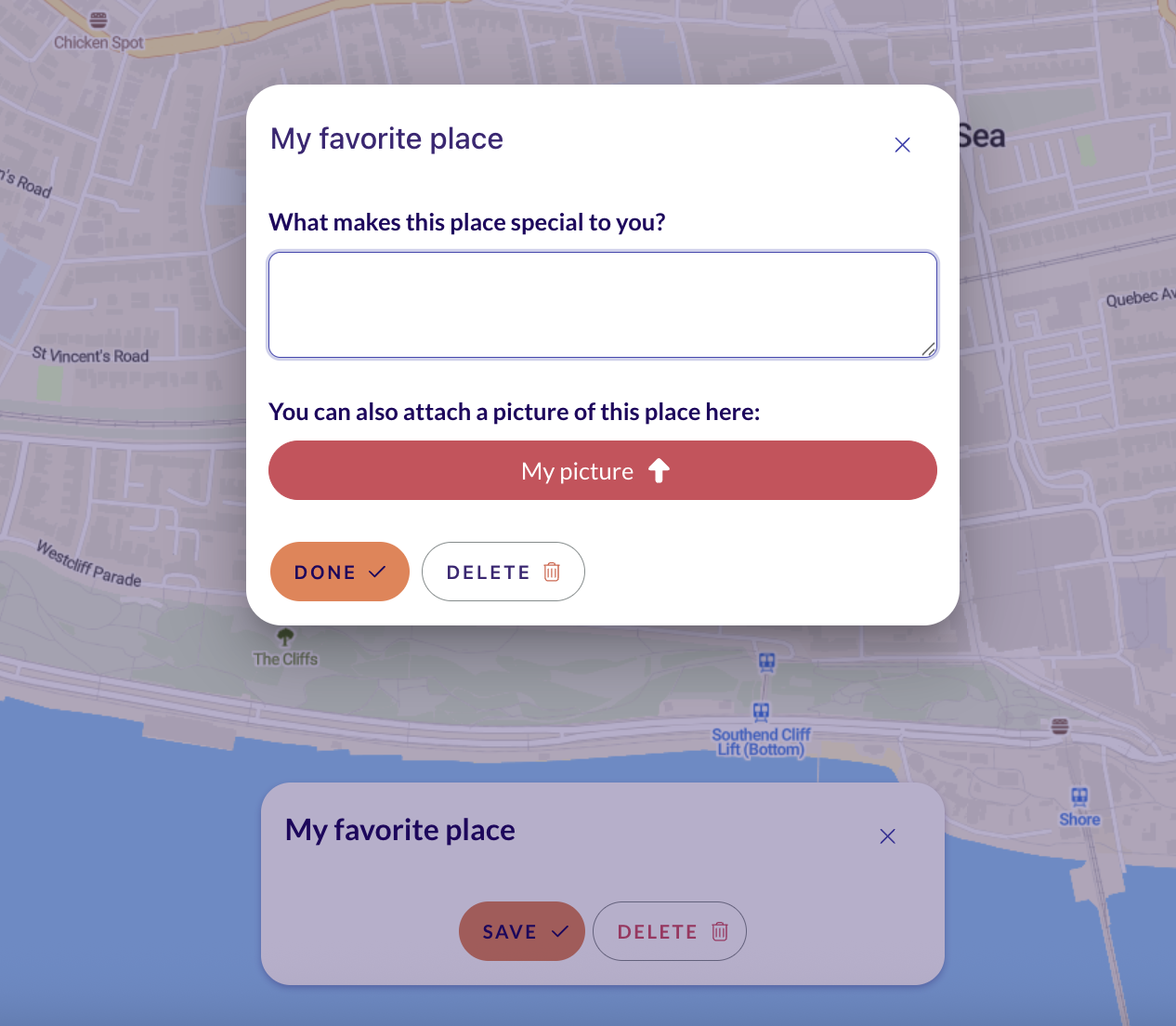

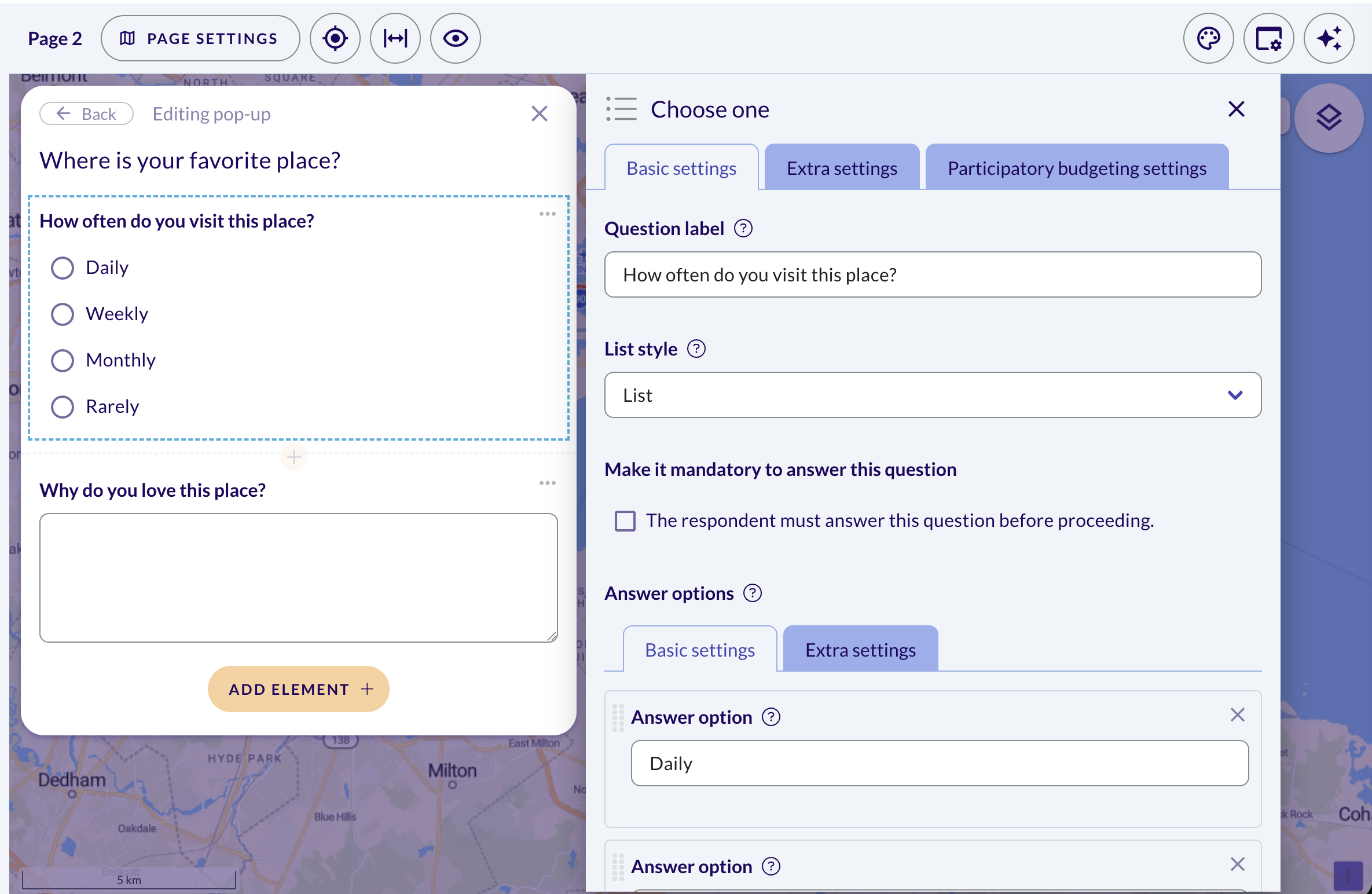

   This is the pop up window that appears after the respondent places their mark on the map:

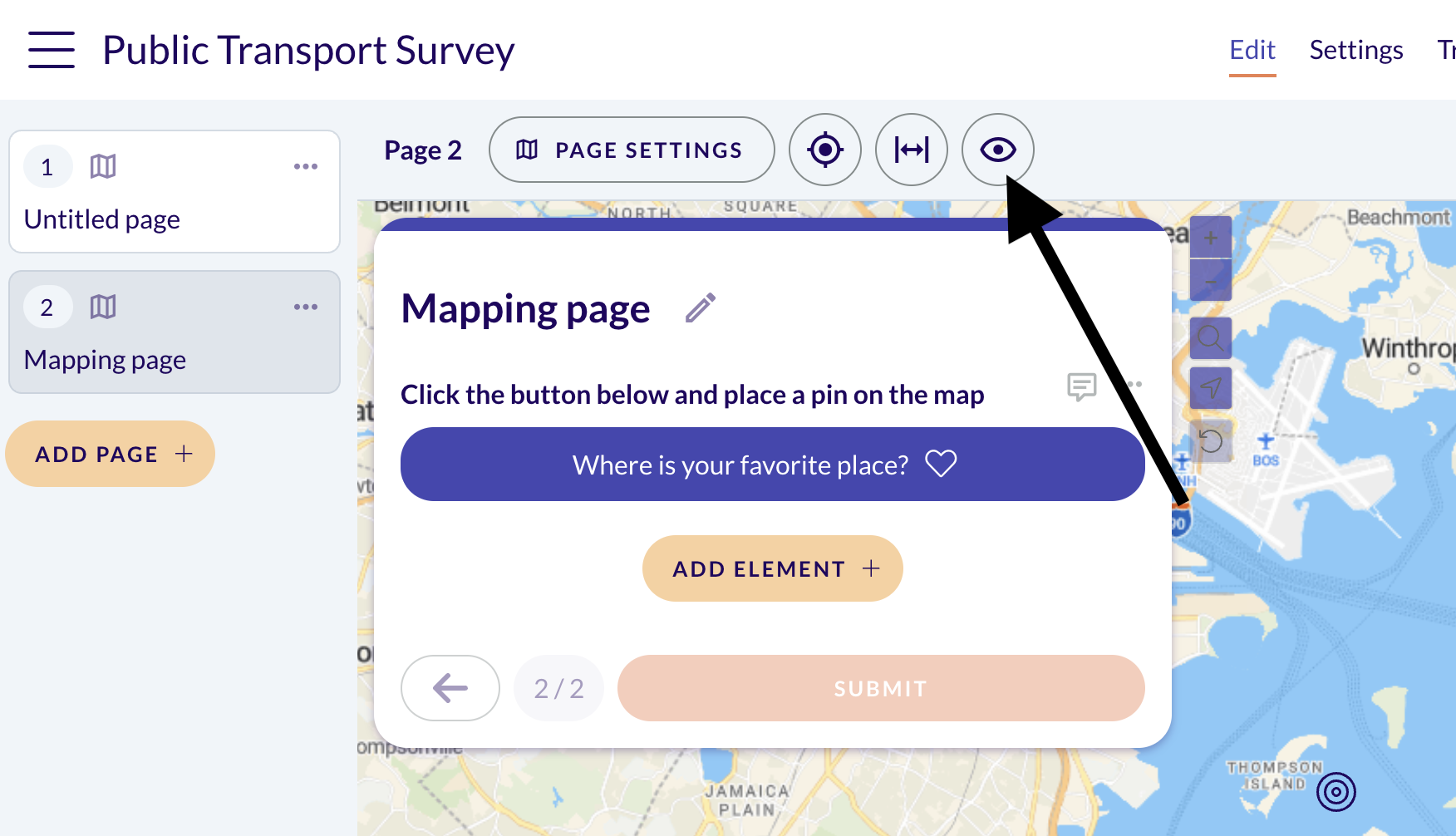

5. Test in Preview.

   ---

Set the question to be mandatory

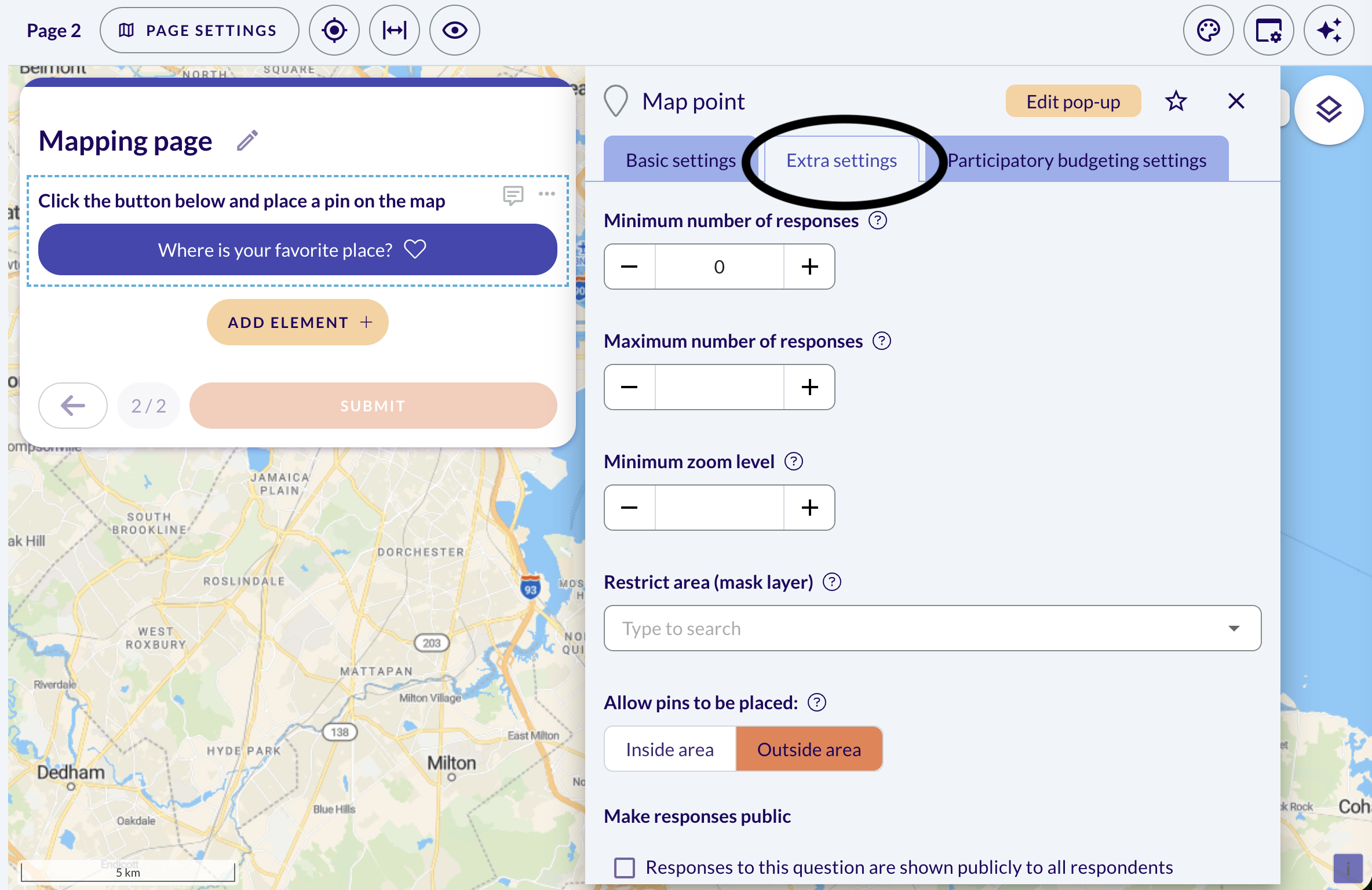

Go to the Extra settings tab > set the minimum and maximum number of responses

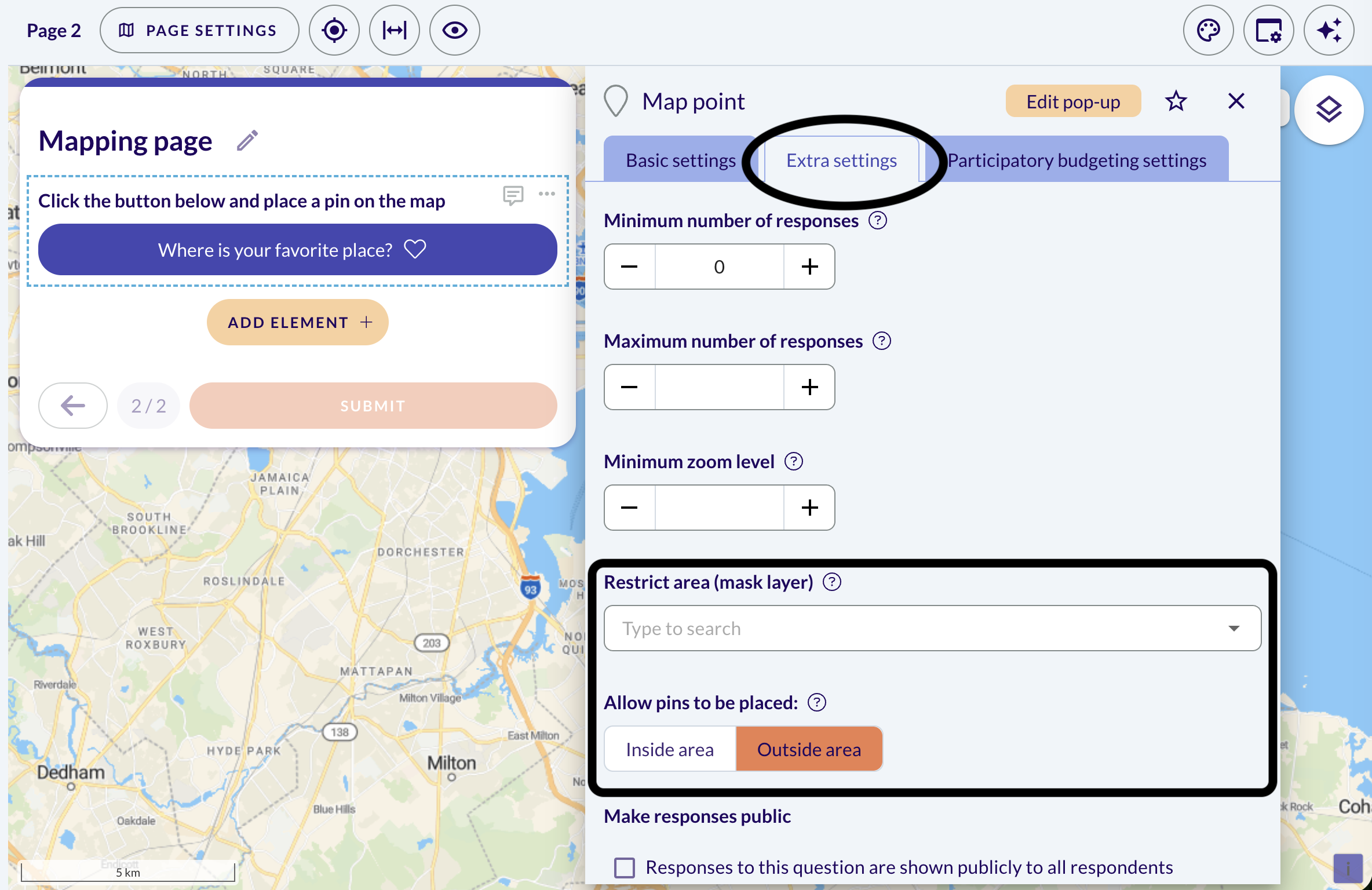

Restrict responses to a specific area

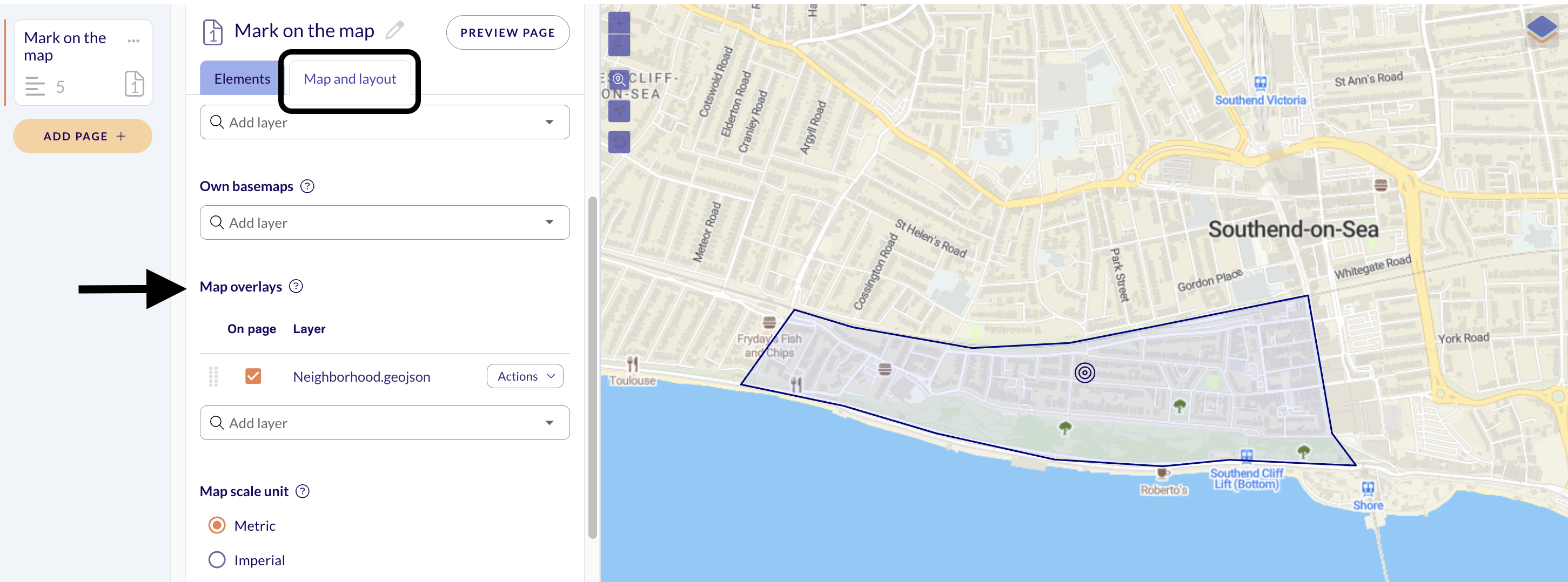

1. Go to Map and layout and select the map or create one.

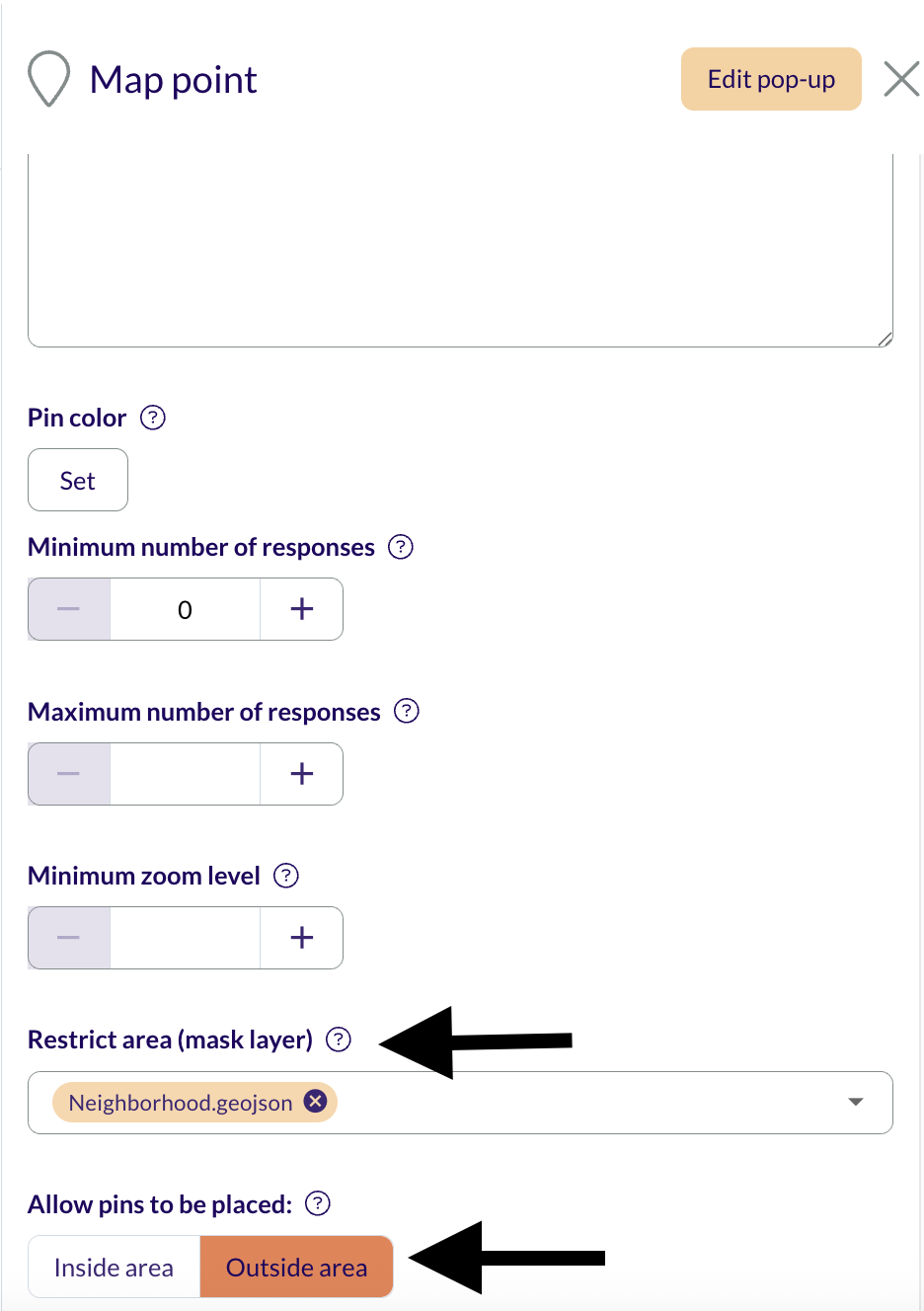

2. Go to the question's Extra settings > Restrict area (mask layer). Select the map layer and choose whether the responses should be inside or outside the area.

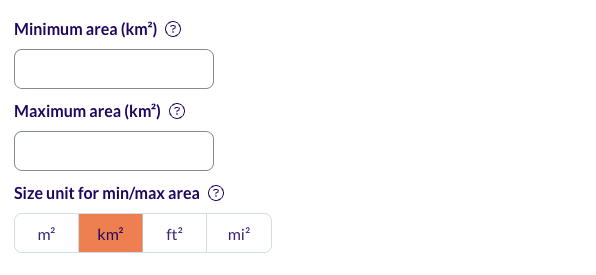

Restrict area size/line length that can be drawn (map line/area)

These settings can be found under Extra settings:

Tip! This allows you to now essentially create geobudgeting features but with areas instead of pins.

Force respondents to zoom closer before they can draw on the map

Go to Extra settings > Minimum zoom level to set a zoom level for map responses.

Responses will not be accepted until respondent has met required zoom requirements. Detailed information about zoom levels can be found here.

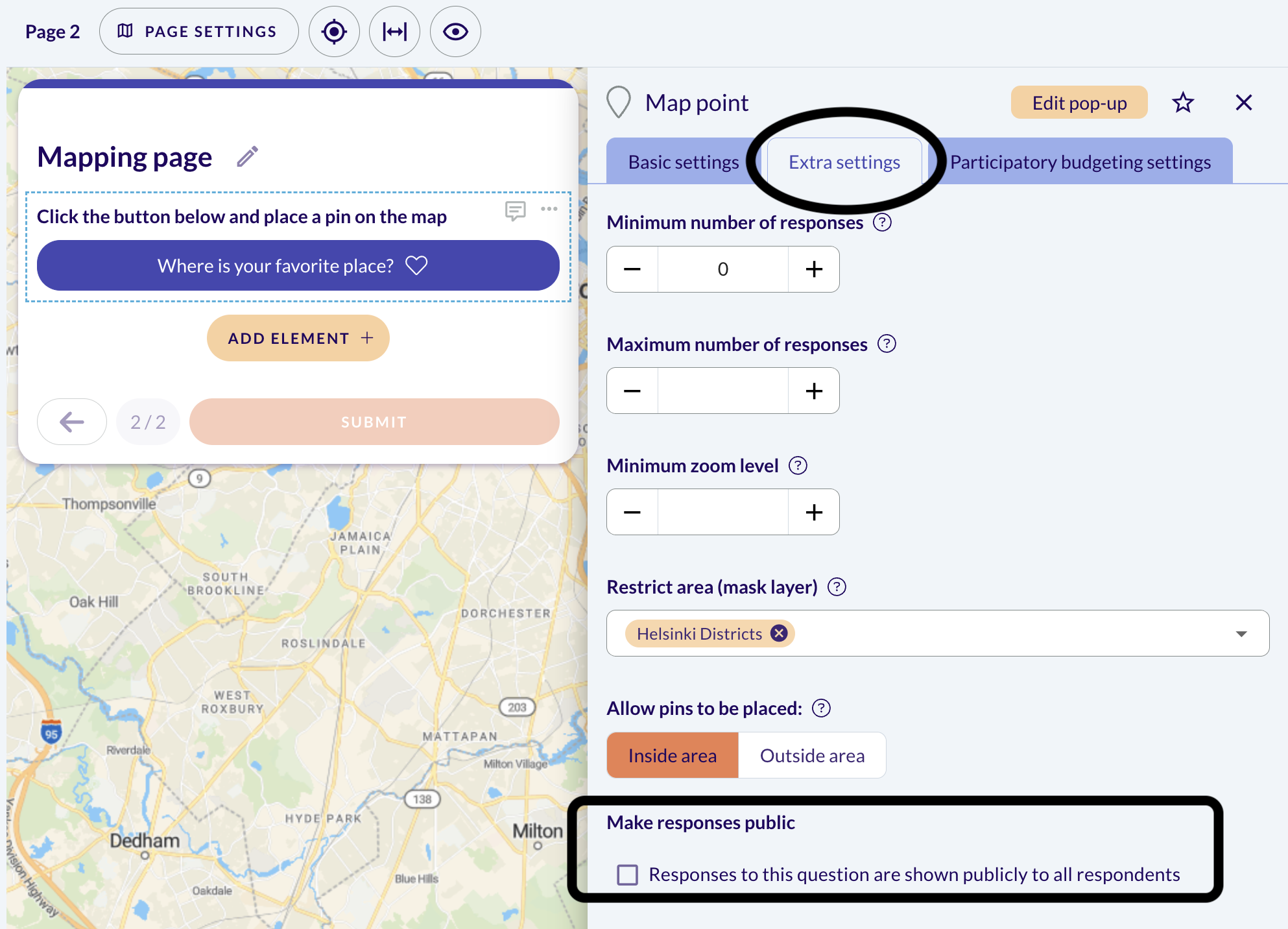

Make map responses public and allow up/downvoting

Available with 'Communicate' level subscriptions.

Follow the step-by-step instructions here.

Note! If you want the associated comment to also be publicly visible, you need to go to that question's settings as well and turn on Make responses to this question public

Change the line color and width (in Map line and Map area)

Extra settings > Line color and width

Allow respondents to "freehand" draw on the map (in Map line and Map area)

Extra settings > Enable freehand drawing

What will the responses to mapping questions look like in the results? What can I do with the results?

This article will tell you all about it!
