Legend / map layer menu

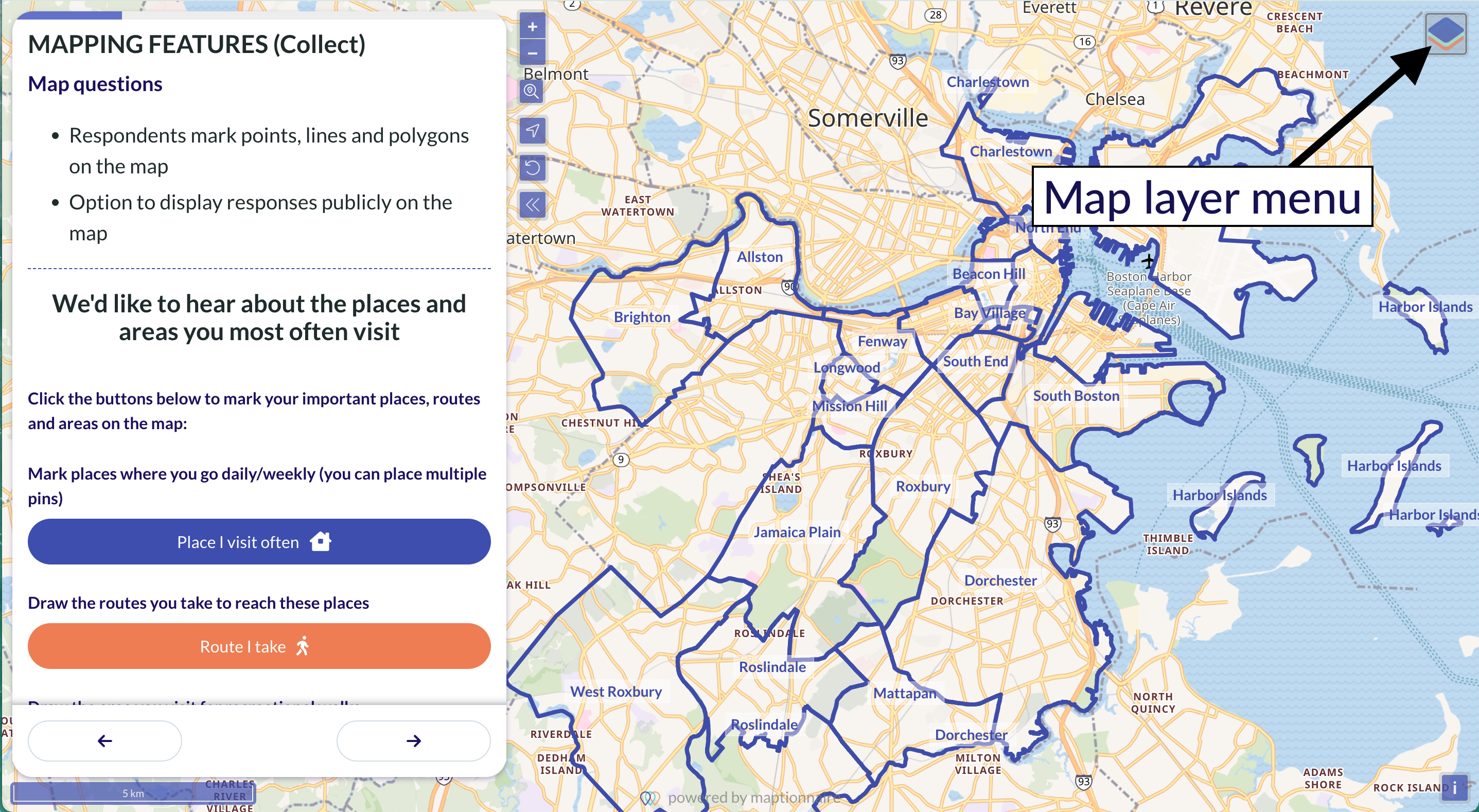

The top right corner of each mapping page contains the map layer menu or legend. It allows respondents to toggle map layers on and off. Below are instructions for customizing it.

Editing map layer names

You can edit the names of any maps that you import to Maptionnaire.

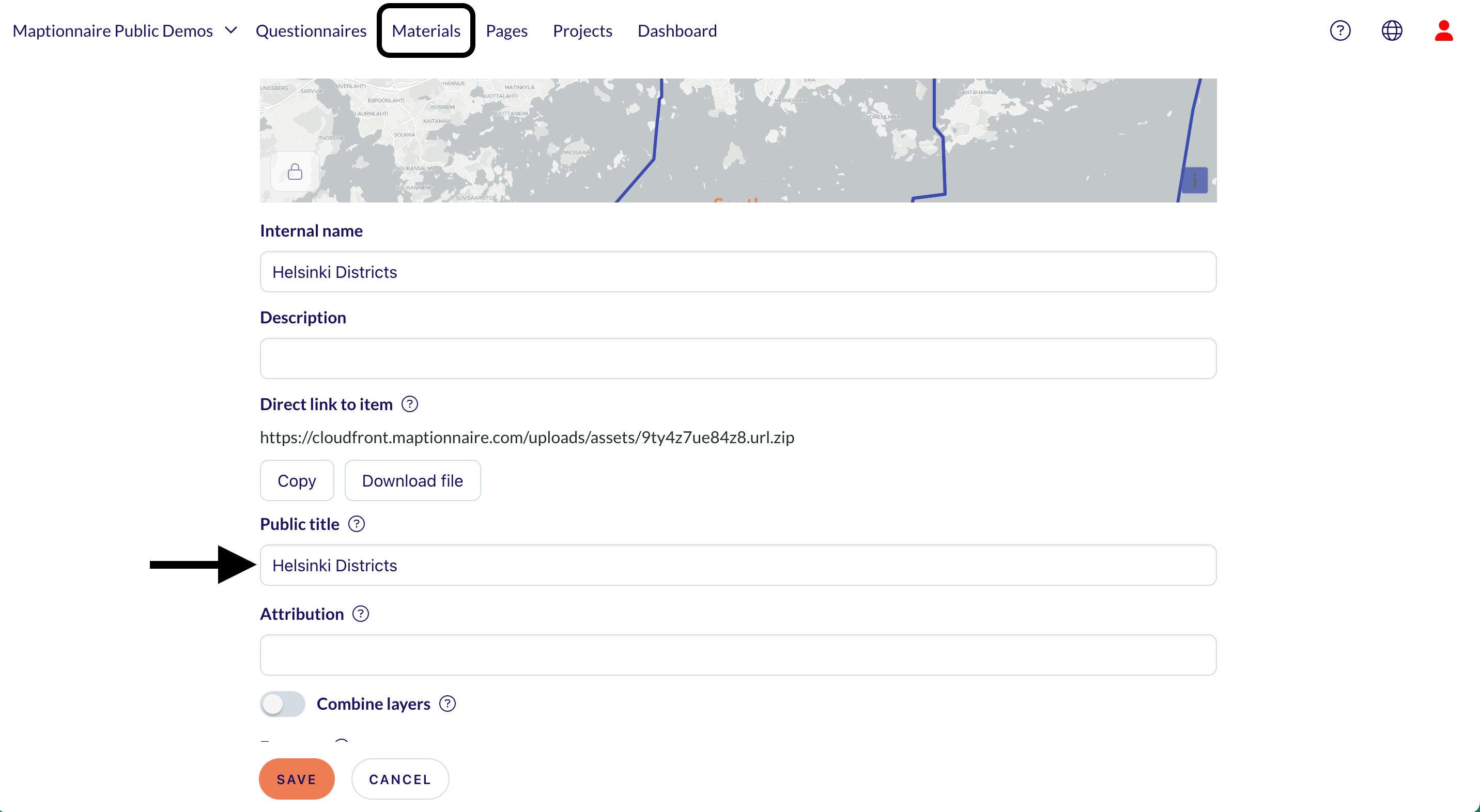

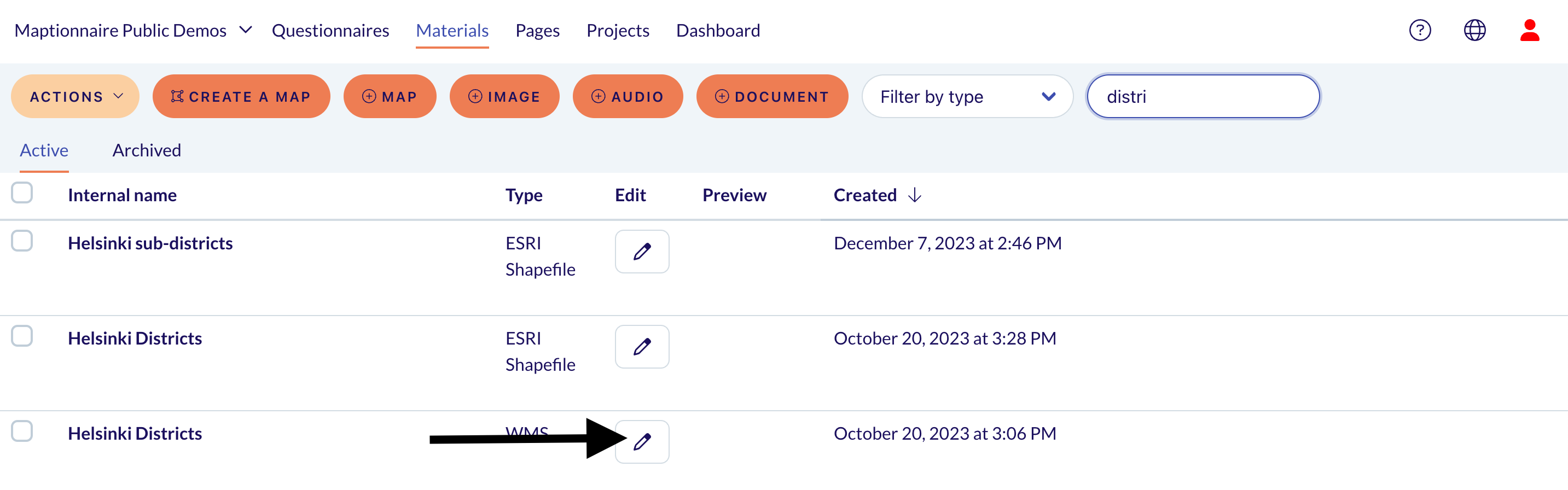

1. Go to Materials and open the editing mode of the map.



2. Write title under Public title.



3. Click Save.

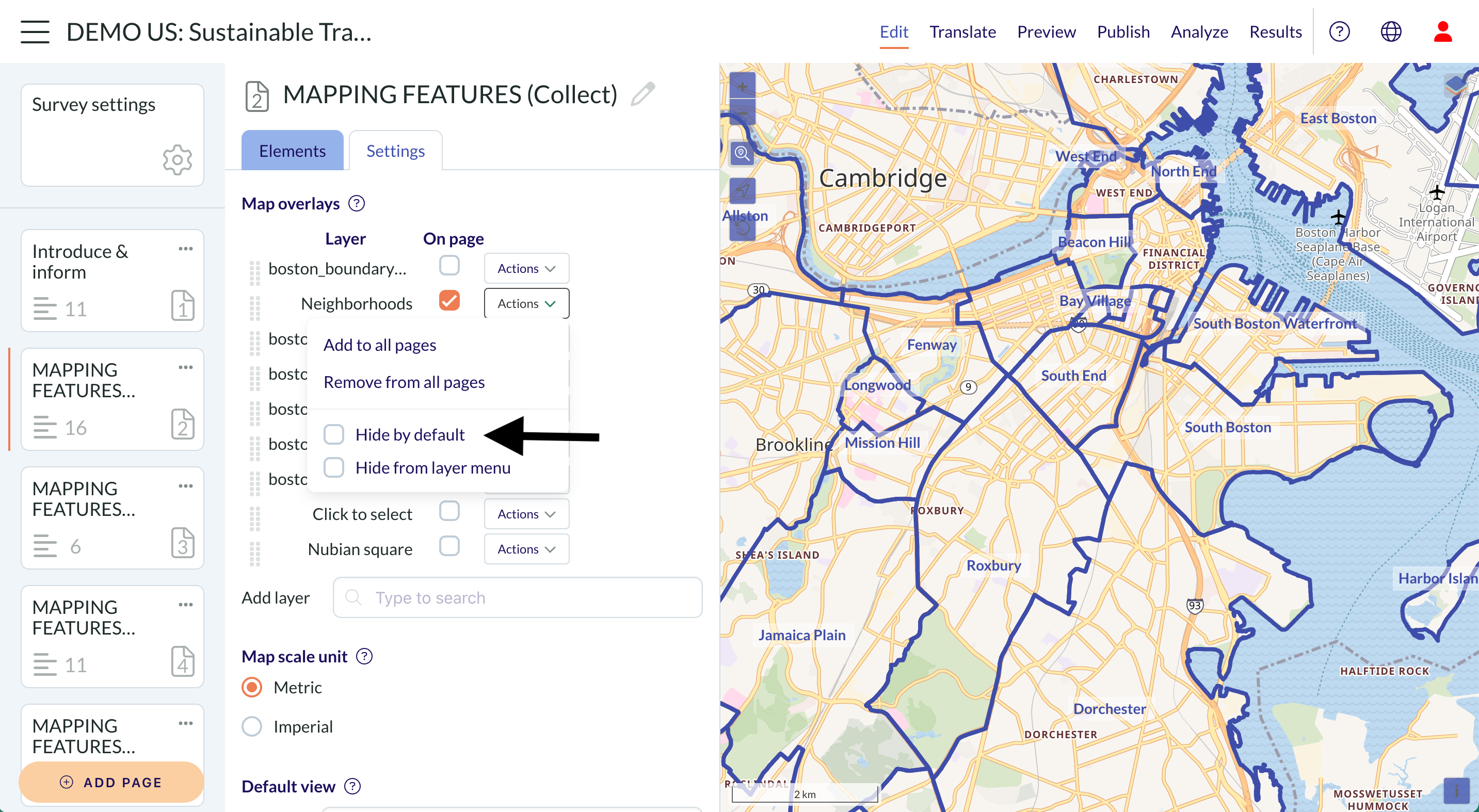

Hide a map

1. Add the map layer to the page in Settings

2. Open the Actions menu

3. Choose Hide by default

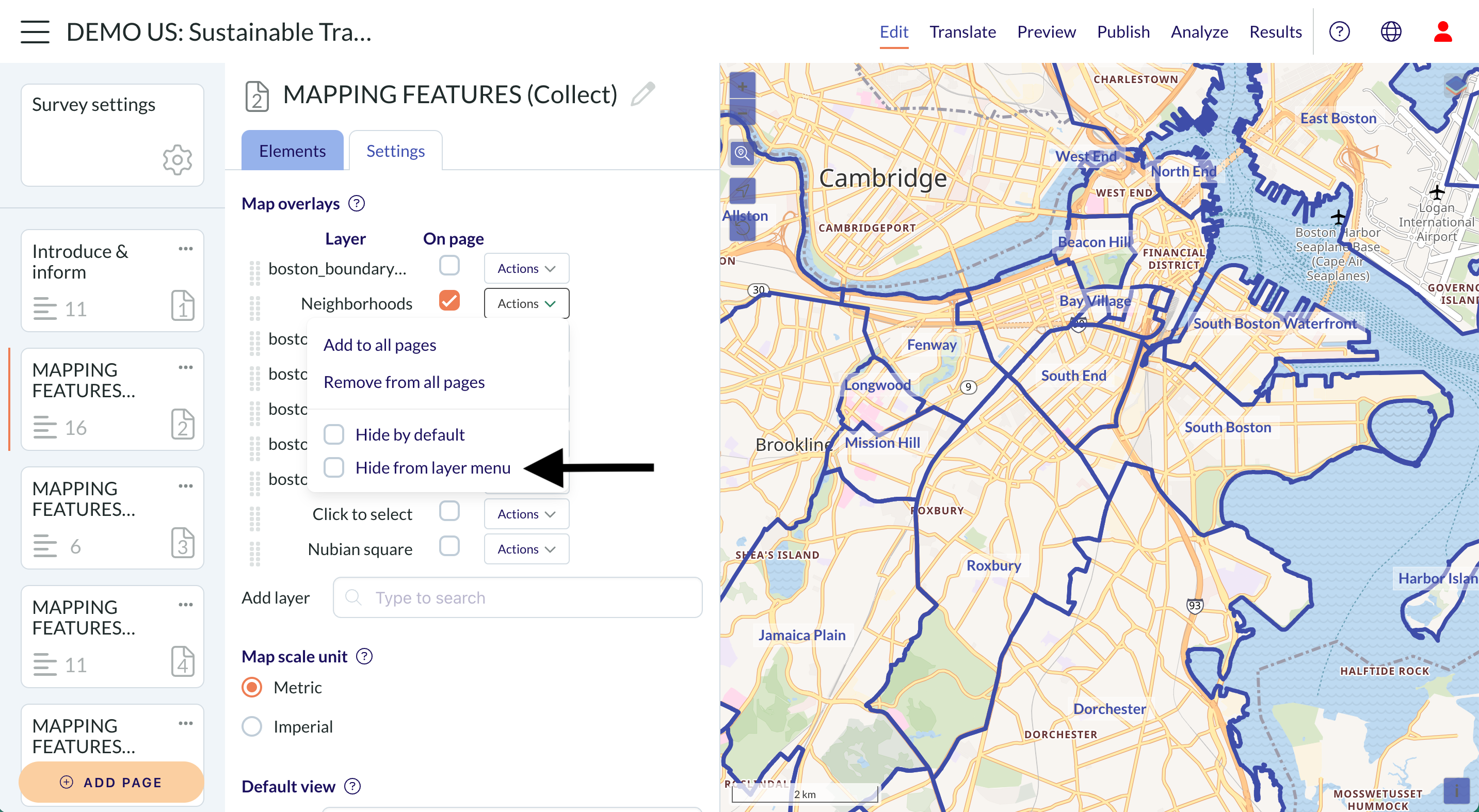

Hide a map layer from the layer menu

1. Add the map layer to the page in Settings

2. Open the Actions menu

3. Choose Hide from layer menu



Hide response layers from the map layer menu

Response layers are the map responses that the respondent has given on other pages. Usually map responses are only visible on the questionnaire page where that specific map question is asked. However, respondents can choose to add their answers to the map on other pages by selecting them from the map layer menu.

If you want, you can hide response layers from the layer menu

1. Go to the Extra settings of the map question.

2. Choose Hide from layer menu



You can also change the title shown for the response layer in the layer menu

1. Go to the Extra settings of the map question.

2. Write the title under Layer title
